| Mfr. #: | TC7660SCPA |
|---|---|
| Manufacturer: | Microchip Technology |
| Description: | Voltage Regulators - Switching Regulators High Voltage |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TC7660SCPA Datasheet |
Product belongs to the - series. Type: Charge Pump Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 8-PDIP Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 10kHz ~ 45kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin . The value of No is included as a product attribute. The minimum input voltage is 1.5V. The 12V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: - 1.5 V to - 12 V 3 V to 24 V Maximum Input Voltage: 12 V Output current: 20 mA Switching frequency is 10 kHz
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

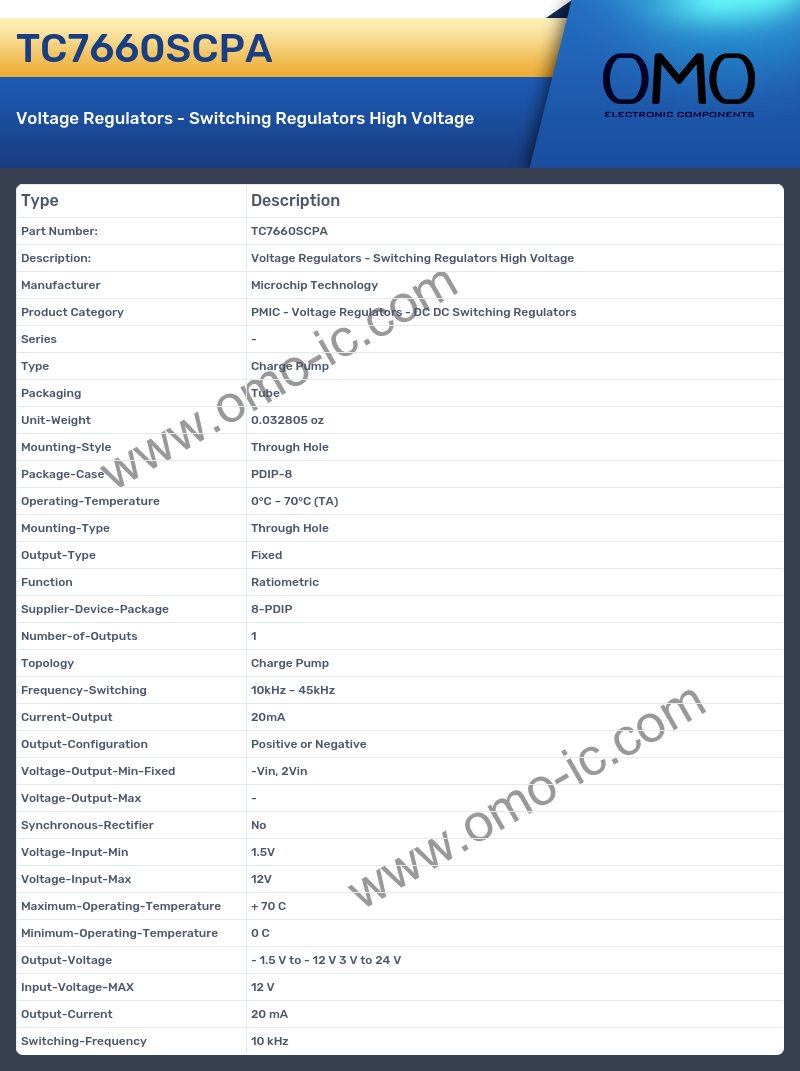

TC7660SCPA Specifications
A: What is the Series of the product?
Q: The Series of the product is -.
A: What is the Type of the product?
Q: The Type of the product is Charge Pump.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.032805 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PDIP-8
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C (TA).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Fixed.
A: What is the Function of the product?
Q: The Function of the product is Ratiometric.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-PDIP
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1.
A: What is the Topology of the product?
Q: The Topology of the product is Charge Pump.
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is 10kHz ~ 45kHz.
A: What is the Output-Configuration of the product?
Q: The Output-Configuration of the product is Positive or Negative.
A: What is the Voltage-Output-Min-Fixed of the product?
Q: The Voltage-Output-Min-Fixed of the product is -Vin, 2Vin.
A: What is the Synchronous-Rectifier of the product?
Q: The Synchronous-Rectifier of the product is No.
A: What is the Voltage-Input-Min of the product?
Q: The Voltage-Input-Min of the product is 1.5V.
A: What is the Voltage-Input-Max of the product?
Q: The Voltage-Input-Max of the product is 12V.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 70 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: What is the Output-Voltage of the product?
Q: The Output-Voltage of the product is - 1.5 V to - 12 V 3 V to 24 V.
A: At what frequency does the Input-Voltage-MAX?
Q: The product Input-Voltage-MAX is 12 V.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 20 mA
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 10 kHz
