TC962COE713 Overview

Product belongs to the - series. Type: Charge Pump Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-16 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 16-SOIC Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 12kHz ~ 24kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin, Vin/2 . The value of No is included as a product attribute. The minimum input voltage is 3V. The 18V. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: - 3 V to - 18 V 650 uA is 92 nA. Input Voltage Range: 3 V to 18 V Maximum Input Voltage: 18 V Output current: 80 mA Switching frequency is 24 kHz The product's 3 V is 5.1 V. Minimum supply voltage is 3 V

TC962COE713 Image

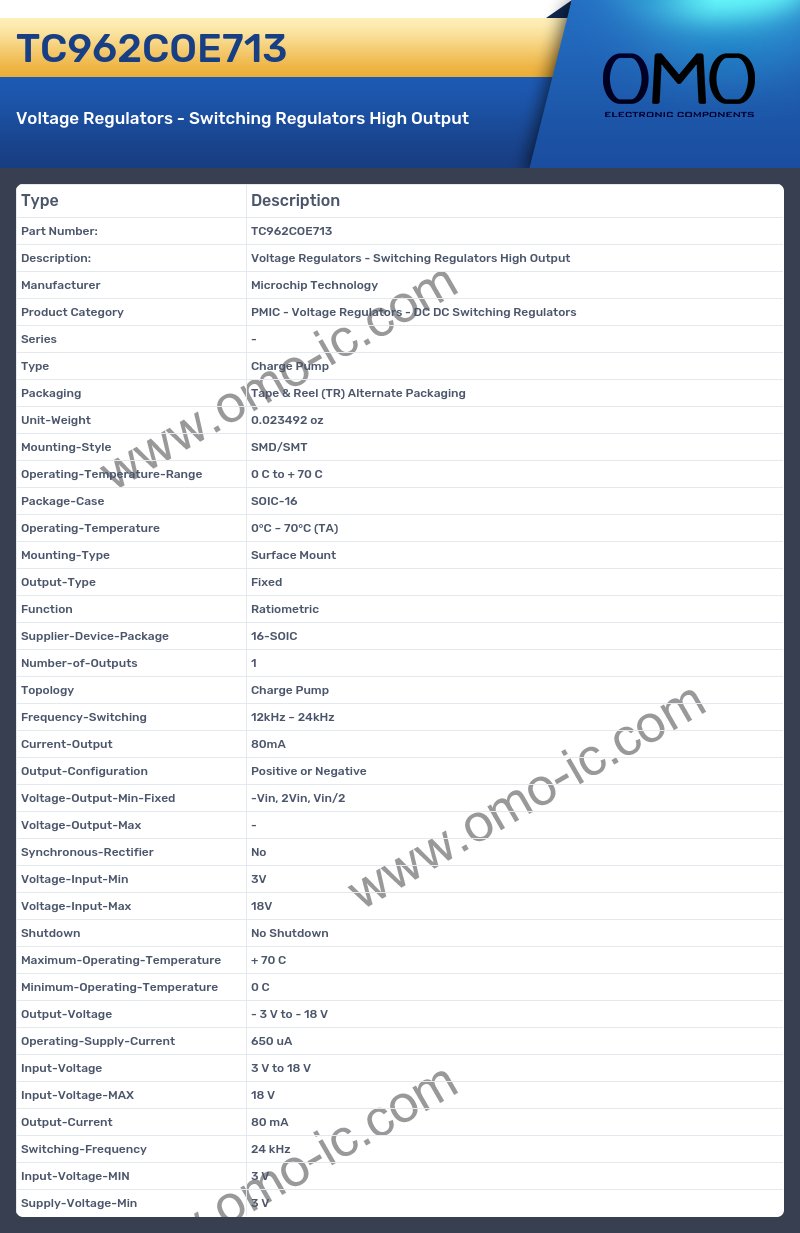

TC962COE713 Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Type Charge Pump
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 12kHz ~ 24kHz
• Current-Output 80mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed -Vin, 2Vin, Vin/2
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 3V
• Voltage-Input-Max 18V
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage - 3 V to - 18 V
• Operating-Supply-Current 650 uA
• Input-Voltage 3 V to 18 V
• Input-Voltage-MAX 18 V
• Output-Current 80 mA
• Switching-Frequency 24 kHz
• Input-Voltage-MIN 3 V
• Supply-Voltage-Min 3 V
