TDA2822D

TDA2822D Overview

Product belongs to the TDA2822D series. This product is categorized as Audio Amplifiers Type: Class AB Tube Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 The Single for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: 1-Channel (Mono) or 2-Channel (Stereo) Number of channels: 2 Channel Voltage Supply Range: 1.8 V ~ 15 V Supplier device package: 8-SO Maximum Output Power of 1W x 1 @ 32 Ohm; 380mW x 2 @ 8 Ohm for 1 channel The device offers a 39 dB of 26dB. Class-AB is the class of this product. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 15 mA is 92 nA. Output current: 1000 mA Maximum supply voltage of 15 V Minimum supply voltage is 1.8 V Input bias current of 100 nA This product has a 0.2 % for clear and precise audio. 32 Ohm audio load impedance Single supply type

TDA2822D Image

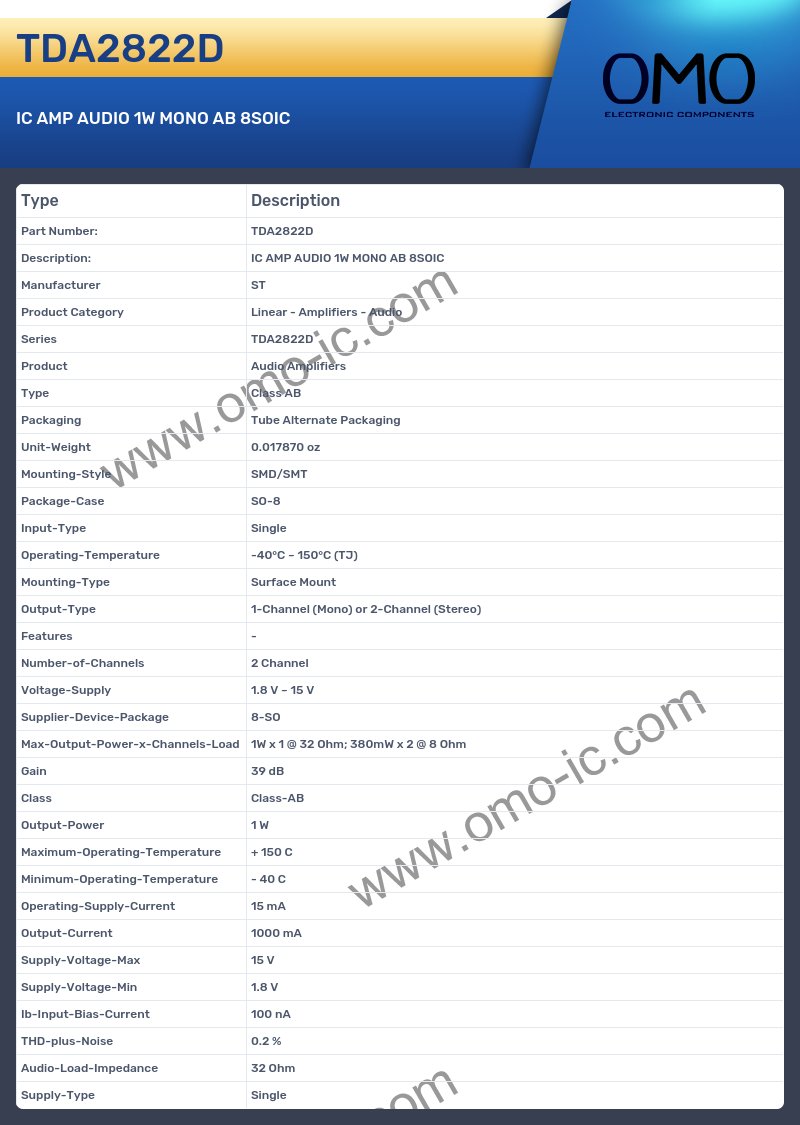

TDA2822D Specifications

• Manufacturer ST
• Product Category Linear - Amplifiers - Audio
• Series TDA2822D
• Product Audio Amplifiers
• Type Class AB
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Input-Type Single
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type 1-Channel (Mono) or 2-Channel (Stereo)
• Features -
• Number-of-Channels 2 Channel
• Voltage-Supply 1.8 V ~ 15 V
• Supplier-Device-Package 8-SO
• Max-Output-Power-x-Channels-Load 1W x 1 @ 32 Ohm; 380mW x 2 @ 8 Ohm
• Gain 39 dB
• Class Class-AB
• Output-Power 1 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 mA
• Output-Current 1000 mA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 1.8 V
• Ib-Input-Bias-Current 100 nA
• THD-plus-Noise 0.2 %
• Audio-Load-Impedance 32 Ohm
• Supply-Type Single
