THS1206CDAR Overview

Product belongs to the THS1206 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.006113 oz SMD/SMT Mounting-Style TSSOP-32 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 2 Channel/4 Channel Supplier device package: 32-TSSOP This product's 6M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 3 V ~ 5.25 V. Configuration S/H-MUX-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 216 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 69 dB The THS1206M-EVM. Number-of-Converters: 1 Converter 6 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5.25 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: +/- 1 LSB

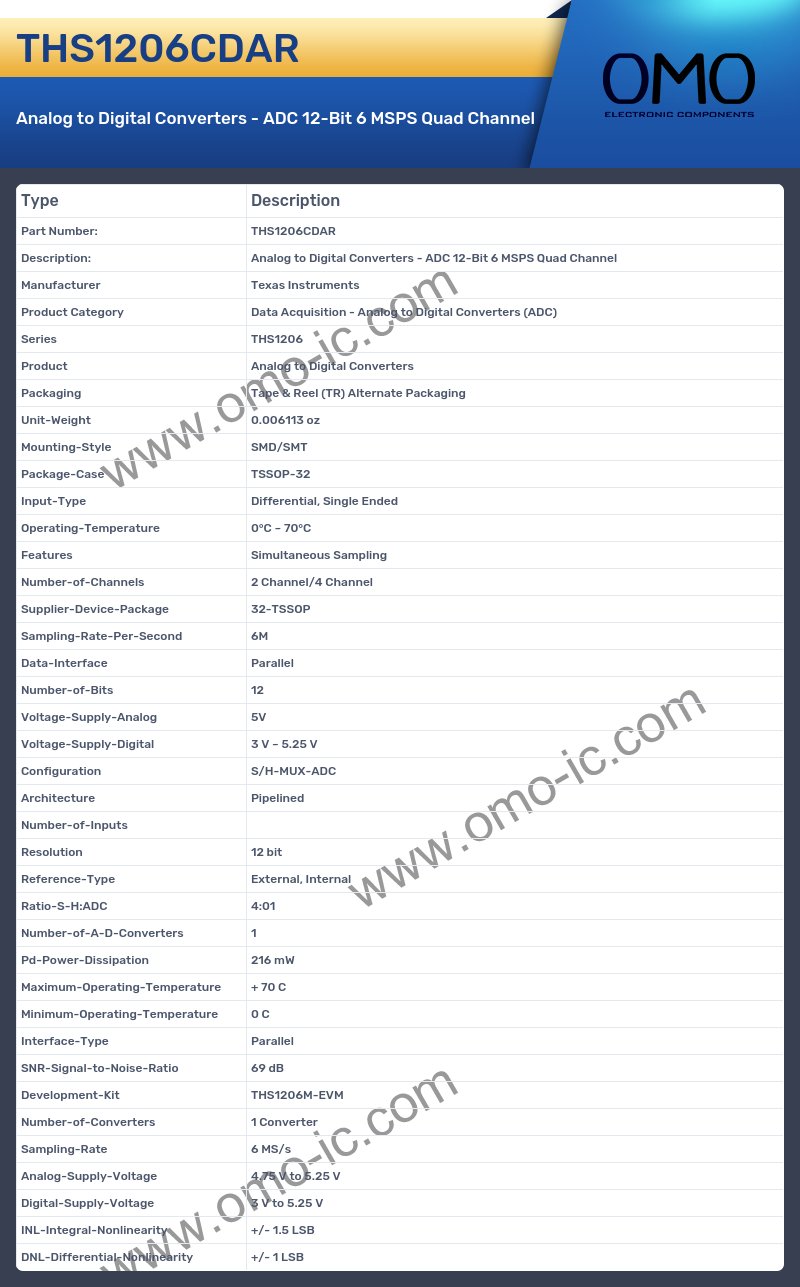

THS1206CDAR Image

THS1206CDAR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1206
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.006113 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-32
• Input-Type Differential, Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel/4 Channel
• Supplier-Device-Package 32-TSSOP
• Sampling-Rate-Per-Second 6M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 3 V ~ 5.25 V
• Configuration S/H-MUX-ADC
• Architecture Pipelined
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 4:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 216 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 69 dB
• Development-Kit THS1206M-EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 6 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
