THS3115EVM

THS3115EVM Overview

Product belongs to the - series. This product is categorized as Evaluation Modules Type: High Speed Amplifiers Operational temperature range: 0°C ~ 70°C Output-Type: Single-Ended Voltage supply range: 10 V ~ 30 V, ±5 V ~ 15 V The 110MHz The 1550 V/μs. Current-Output-Channel is 270mA The amplifier is of Current Feedback type. Included item: Board. IC package type: THS3115 Board type: Fully Populated. The product has 2 - Dual channel per IC. This product operates at a +/- 5 V to +/- 15 V supply voltage for reliable performance. This product is an THS3115 Evaluation Board with Shutdown provides a platform for developing high-speed current-feedback application circuits. This tool is designed for the THS3115.

THS3115EVM Image

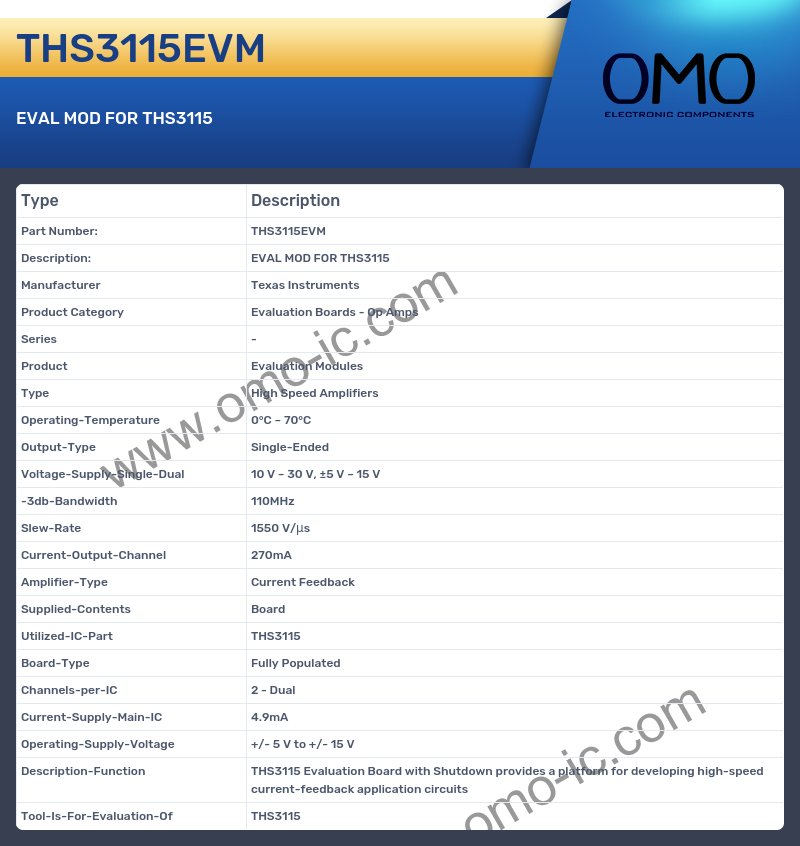

THS3115EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - Op Amps
• Series -
• Product Evaluation Modules
• Type High Speed Amplifiers
• Operating-Temperature 0°C ~ 70°C
• Output-Type Single-Ended
• Voltage-Supply-Single-Dual 10 V ~ 30 V, ±5 V ~ 15 V
• -3db-Bandwidth 110MHz
• Slew-Rate 1550 V/μs
• Current-Output-Channel 270mA
• Amplifier-Type Current Feedback
• Supplied-Contents Board
• Utilized-IC-Part THS3115
• Board-Type Fully Populated
• Channels-per-IC 2 - Dual
• Current-Supply-Main-IC 4.9mA
• Operating-Supply-Voltage +/- 5 V to +/- 15 V
• Description-Function THS3115 Evaluation Board with Shutdown provides a platform for developing high-speed current-feedback application circuits
• Tool-Is-For-Evaluation-Of THS3115
