THS4522EVM

THS4522EVM Overview

Product belongs to the - series. This product is categorized as Evaluation Modules Type: Differential Amplifiers Bulk is the packaging method for this product Operational temperature range: -40°C ~ 85°C Output-Type: Differential, Rail-to-Rail Voltage supply range: 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V The 145MHz The 600 V/μs. Current-Output-Channel is 55mA The amplifier is of Differential type. Included item: Board. IC package type: THS4522 Board type: Fully Populated. The product has 2 - Dual channel per IC. This product operates at a 2.5 V to 5.5 V +/- 1.25 V to 2.75 V supply voltage for reliable performance. This tool is designed for the THS4522. 1.1 mA is 92 nA.

THS4522EVM Image

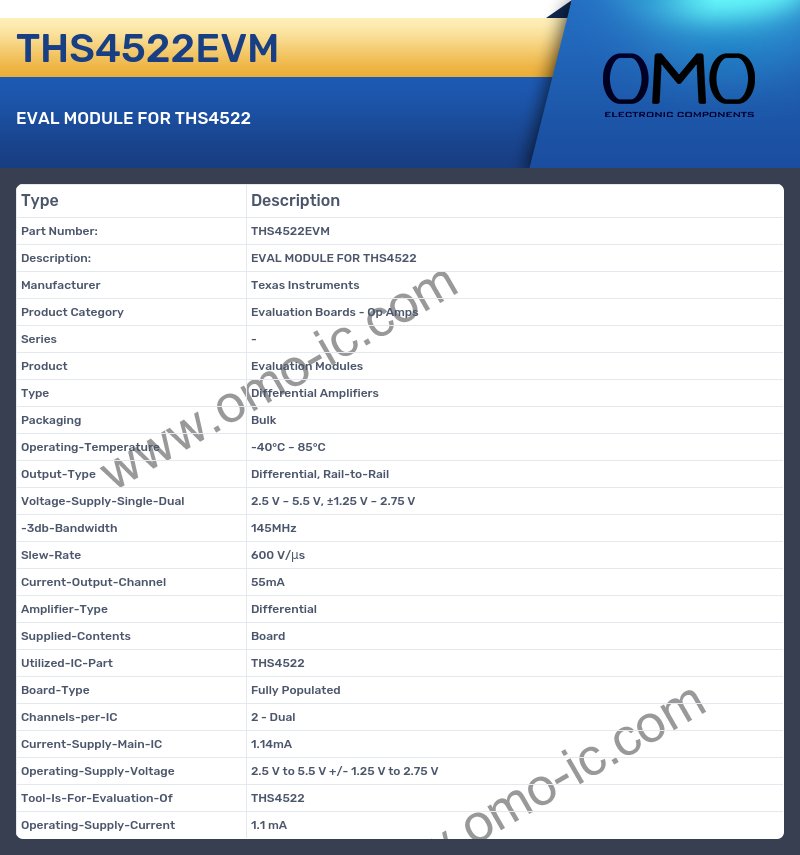

THS4522EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - Op Amps
• Series -
• Product Evaluation Modules
• Type Differential Amplifiers
• Packaging Bulk
• Operating-Temperature -40°C ~ 85°C
• Output-Type Differential, Rail-to-Rail
• Voltage-Supply-Single-Dual 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V
• -3db-Bandwidth 145MHz
• Slew-Rate 600 V/μs
• Current-Output-Channel 55mA
• Amplifier-Type Differential
• Supplied-Contents Board
• Utilized-IC-Part THS4522
• Board-Type Fully Populated
• Channels-per-IC 2 - Dual
• Current-Supply-Main-IC 1.14mA
• Operating-Supply-Voltage 2.5 V to 5.5 V +/- 1.25 V to 2.75 V
• Tool-Is-For-Evaluation-Of THS4522
• Operating-Supply-Current 1.1 mA
