| Mfr. #: | TIP105 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | TRANS PNP DARL 60V 8A TO-220 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TIP105 Datasheet |
Product belongs to the Darlingtons series. Tube is the packaging method for this product The TIP105_NL is listed as a Part-Aliase. Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 2000 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 80mA, 8A Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 60 V The transistor polarity is PNP. The - 60 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: - 8 A Minimum hfe for DC collector-base gain is 1000 at 3 A at 4 V 200 at 8 A at 4 V. - 50 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

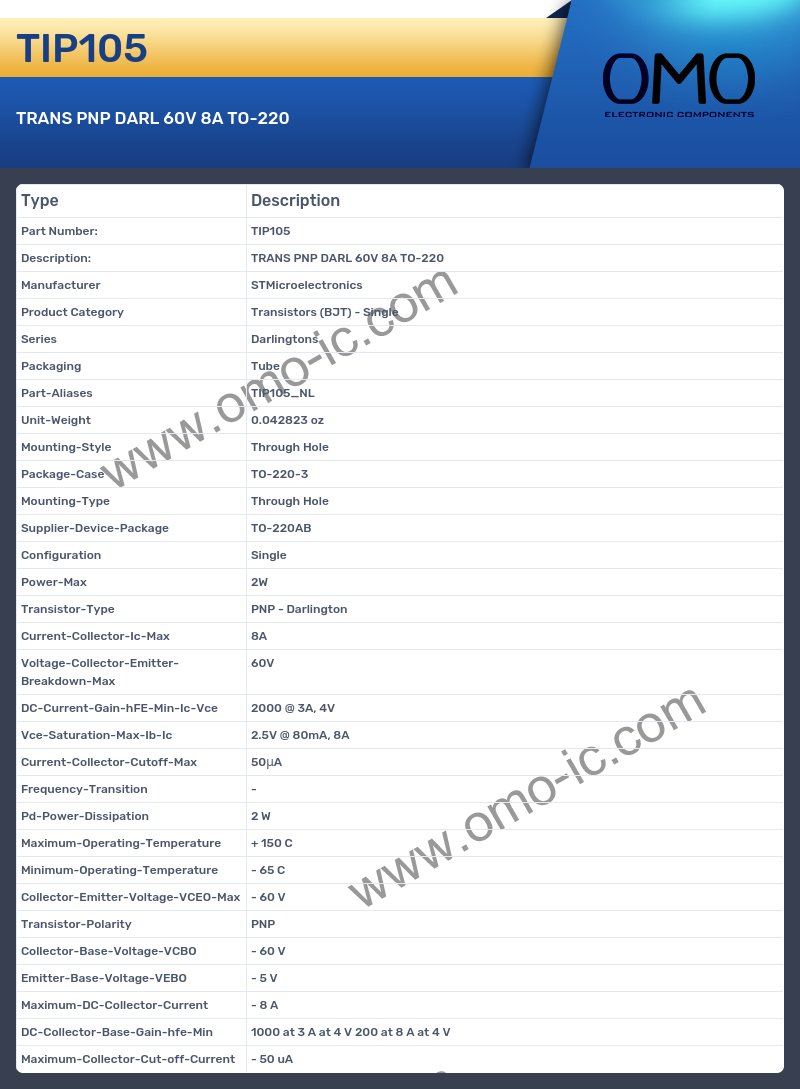

TIP105 Specifications
A: What is the Series of the product?
Q: The Series of the product is Darlingtons.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: At what frequency does the Part-Aliases?
Q: The product Part-Aliases is TIP105_NL.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.042823 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220AB.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP - Darlington.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 8A
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 60V.
A: Is the cutoff frequency of the product DC-Current-Gain-hFE-Min-Ic-Vce?
Q: Yes, the product's DC-Current-Gain-hFE-Min-Ic-Vce is indeed 2000 @ 3A, 4V
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 2.5V @ 80mA, 8A.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 2 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 65 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is - 60 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is PNP.
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is - 60 V.
A: At what frequency does the Emitter-Base-Voltage-VEBO?
Q: The product Emitter-Base-Voltage-VEBO is - 5 V.
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is - 8 A.
A: What is the DC-Collector-Base-Gain-hfe-Min of the product?
Q: The DC-Collector-Base-Gain-hfe-Min of the product is 1000 at 3 A at 4 V 200 at 8 A at 4 V.
A: At what frequency does the Maximum-Collector-Cut-off-Current?
Q: The product Maximum-Collector-Cut-off-Current is - 50 uA.
