TL026CD Overview

Product belongs to the TL026 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: Differential Versatile Automatic Gain Control (AGC) applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-SOIC 1 is 8. Voltage supply range: ±3 V ~ 8 V This product has a 22mA of 200μA. The 50MHz The -. Current-Output-Channel is 4mA The amplifier is of General Purpose Amplifier type. Power-off control: 725 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 27 mA at +/- 6 V is 92 nA. Input bias current of 30 uA at +/- 6 V The CMRR-Common-Mode-Rejection-Ratio is 60 dB. Gain in voltage per voltage: 85 V/V 50 MHz is the 3-dB bandwidth of the product. 38.59 dB voltage gain

TL026CD Image

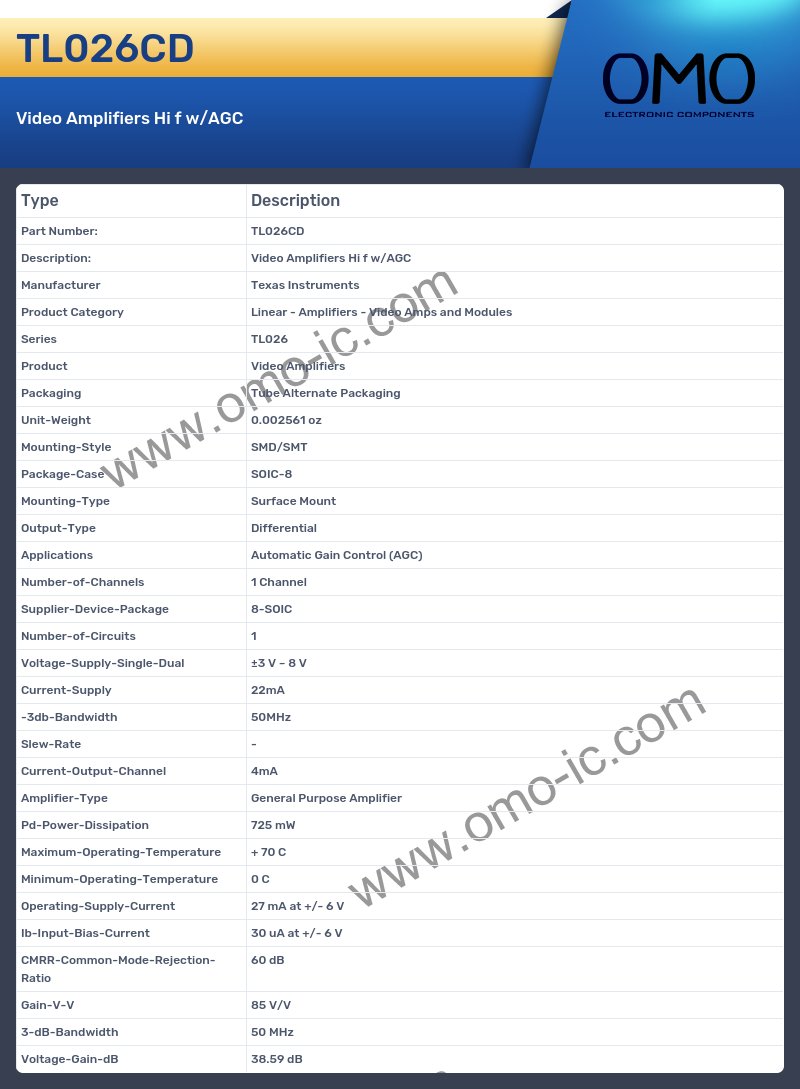

TL026CD Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series TL026
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type Differential
• Applications Automatic Gain Control (AGC)
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual ±3 V ~ 8 V
• Current-Supply 22mA
• -3db-Bandwidth 50MHz
• Slew-Rate -
• Current-Output-Channel 4mA
• Amplifier-Type General Purpose Amplifier
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 27 mA at +/- 6 V
• Ib-Input-Bias-Current 30 uA at +/- 6 V
• CMRR-Common-Mode-Rejection-Ratio 60 dB
• Gain-V-V 85 V/V
• 3-dB-Bandwidth 50 MHz
• Voltage-Gain-dB 38.59 dB
