TL431ACL3T

TL431ACL3T Overview

Product belongs to the TL431 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-3 Tolerance of ±1% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . - is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Output voltage: 2.5 V to 36 V Initial accuracy: 1 %

TL431ACL3T Image

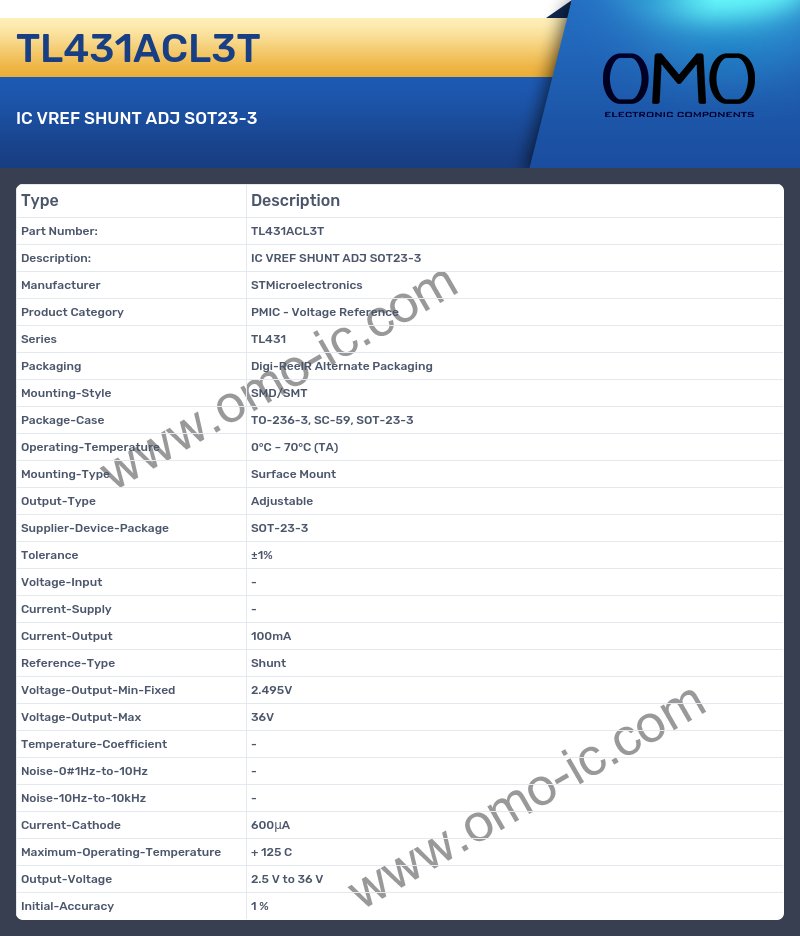

TL431ACL3T Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Reference
• Series TL431
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TO-236-3, SC-59, SOT-23-3
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-3
• Tolerance ±1%
• Voltage-Input -
• Current-Supply -
• Current-Output 100mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.495V
• Voltage-Output-Max 36V
• Temperature-Coefficient -
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 600μA
• Maximum-Operating-Temperature + 125 C
• Output-Voltage 2.5 V to 36 V
• Initial-Accuracy 1 %
