| Mfr. #: | TL431BCDBVTE4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Voltage References Adjustable Precision Shunt Regulato |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TL431BCDBVTE4 Datasheet |
Product belongs to the TL431B series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 Tolerance of ±0.5% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 34 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: Adjustable Initial accuracy: 0.5 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

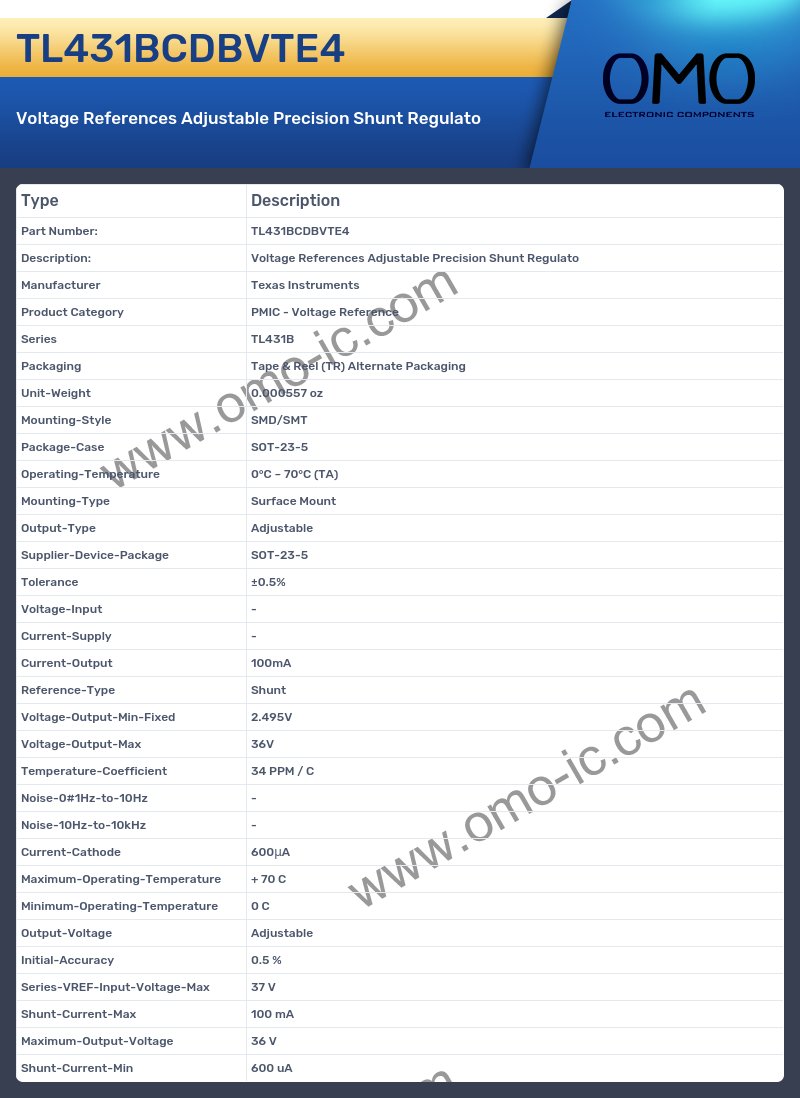

TL431BCDBVTE4 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed TL431B
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tape & Reel (TR) Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.000557 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOT-23-5.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is 0°C ~ 70°C (TA).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Adjustable.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is SOT-23-5.
A: Is the cutoff frequency of the product Tolerance?
Q: Yes, the product's Tolerance is indeed ±0.5%
A: At what frequency does the Voltage-Input?
Q: The product Voltage-Input is -.
A: At what frequency does the Current-Supply?
Q: The product Current-Supply is -.
A: Is the cutoff frequency of the product Reference-Type?
Q: Yes, the product's Reference-Type is indeed Shunt
A: Is the cutoff frequency of the product Voltage-Output-Min-Fixed?
Q: Yes, the product's Voltage-Output-Min-Fixed is indeed 2.495V
A: What is the Temperature-Coefficient of the product?
Q: The Temperature-Coefficient of the product is 34 PPM / C.
A: What is the Noise-0#1Hz-to-10Hz of the product?
Q: The Noise-0#1Hz-to-10Hz of the product is -.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: What is the Output-Voltage of the product?
Q: The Output-Voltage of the product is Adjustable.
A: Is the cutoff frequency of the product Initial-Accuracy?
Q: Yes, the product's Initial-Accuracy is indeed 0.5 %
A: Is the cutoff frequency of the product Series-VREF-Input-Voltage-Max?
Q: Yes, the product's Series-VREF-Input-Voltage-Max is indeed 37 V
A: What is the Shunt-Current-Max of the product?
Q: The Shunt-Current-Max of the product is 100 mA.
A: Is the cutoff frequency of the product Maximum-Output-Voltage?
Q: Yes, the product's Maximum-Output-Voltage is indeed 36 V
A: What is the Shunt-Current-Min of the product?
Q: The Shunt-Current-Min of the product is 600 uA.
