| Mfr. #: | TL431BQPKG3 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Voltage References Adjustable Precision Shunt Regulato |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TL431BQPKG3 Datasheet |
Product belongs to the TL431B series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SIP-3 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-89-3 Tolerance of ±0.5% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 34 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adjustable Initial accuracy: 0.5 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

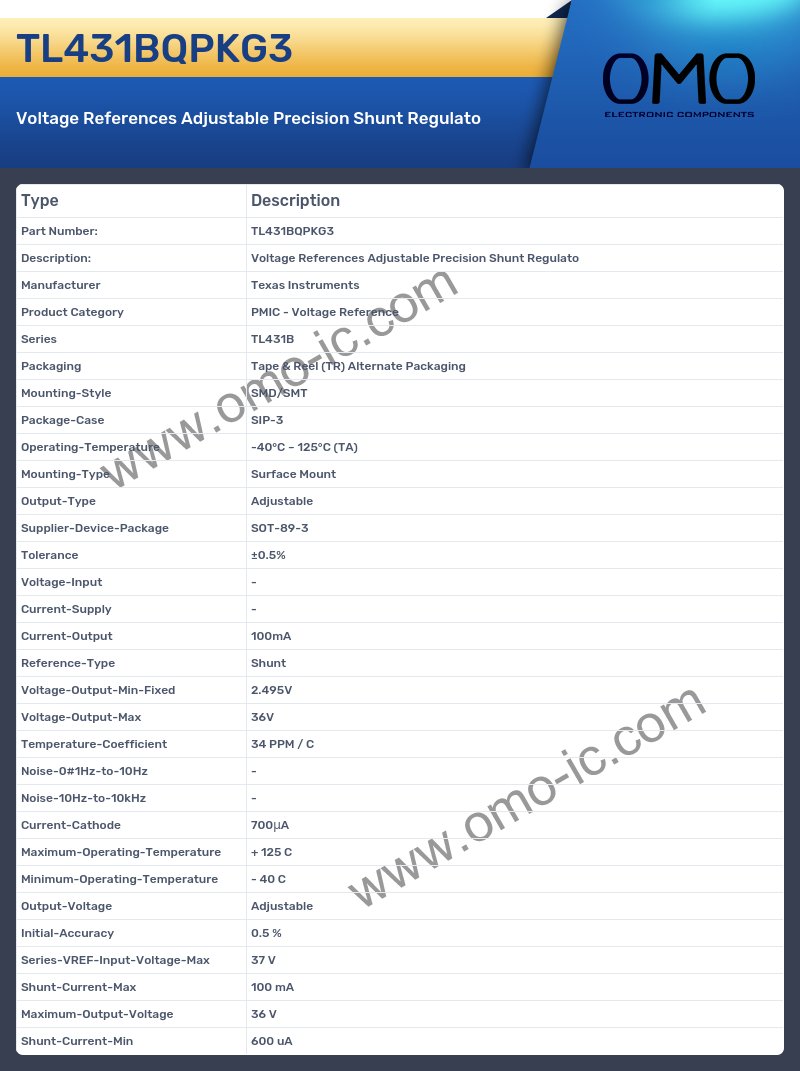

TL431BQPKG3 Specifications
