| Mfr. #: | TL431CP |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | IC VREF SHUNT ADJ 8DIP |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TL431CP Datasheet |
Product belongs to the TL431 series. Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Adjustable Supplier device package: 8-PDIP Tolerance of ±2.2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 50ppm/°C Typical is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: Adjustable Initial accuracy: 2 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

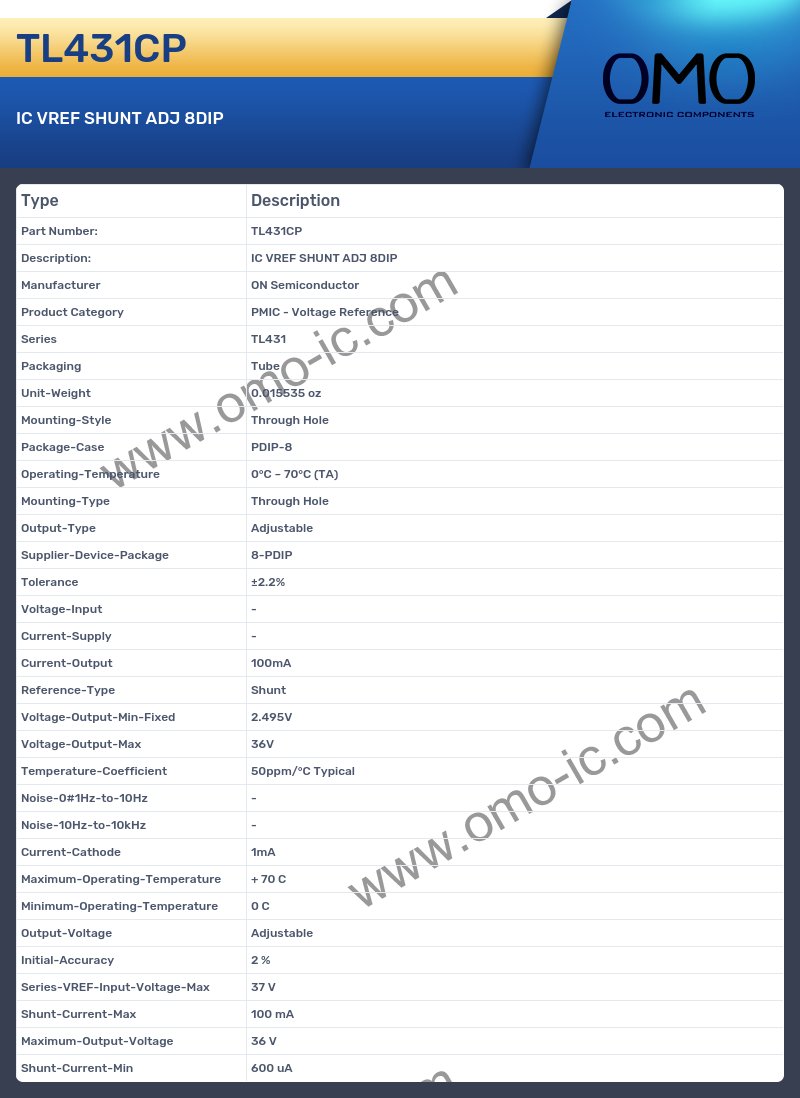

TL431CP Specifications
A: What is the Series of the product?
Q: The Series of the product is TL431.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.015535 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: What is the Package-Case of the product?
Q: The Package-Case of the product is PDIP-8.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C (TA).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Adjustable.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-PDIP.
A: Is the cutoff frequency of the product Tolerance?
Q: Yes, the product's Tolerance is indeed ±2.2%
A: At what frequency does the Voltage-Input?
Q: The product Voltage-Input is -.
A: At what frequency does the Current-Supply?
Q: The product Current-Supply is -.
A: Is the cutoff frequency of the product Reference-Type?
Q: Yes, the product's Reference-Type is indeed Shunt
A: At what frequency does the Voltage-Output-Min-Fixed?
Q: The product Voltage-Output-Min-Fixed is 2.495V.
A: At what frequency does the Temperature-Coefficient?
Q: The product Temperature-Coefficient is 50ppm/°C Typical.
A: Is the cutoff frequency of the product Noise-0#1Hz-to-10Hz?
Q: Yes, the product's Noise-0#1Hz-to-10Hz is indeed -
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed 0 C
A: What is the Output-Voltage of the product?
Q: The Output-Voltage of the product is Adjustable.
A: Is the cutoff frequency of the product Initial-Accuracy?
Q: Yes, the product's Initial-Accuracy is indeed 2 %
A: Is the cutoff frequency of the product Series-VREF-Input-Voltage-Max?
Q: Yes, the product's Series-VREF-Input-Voltage-Max is indeed 37 V
A: What is the Shunt-Current-Max of the product?
Q: The Shunt-Current-Max of the product is 100 mA.
A: What is the Maximum-Output-Voltage of the product?
Q: The Maximum-Output-Voltage of the product is 36 V.
A: What is the Shunt-Current-Min of the product?
Q: The Shunt-Current-Min of the product is 600 uA.
