| Mfr. #: | TL431IDBZT |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Voltage References Adjustable Precision Shunt Regulato |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TL431IDBZT Datasheet |
Product belongs to the TL431 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-3 Tolerance of ±2.2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 34 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: Adjustable Initial accuracy: 2 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

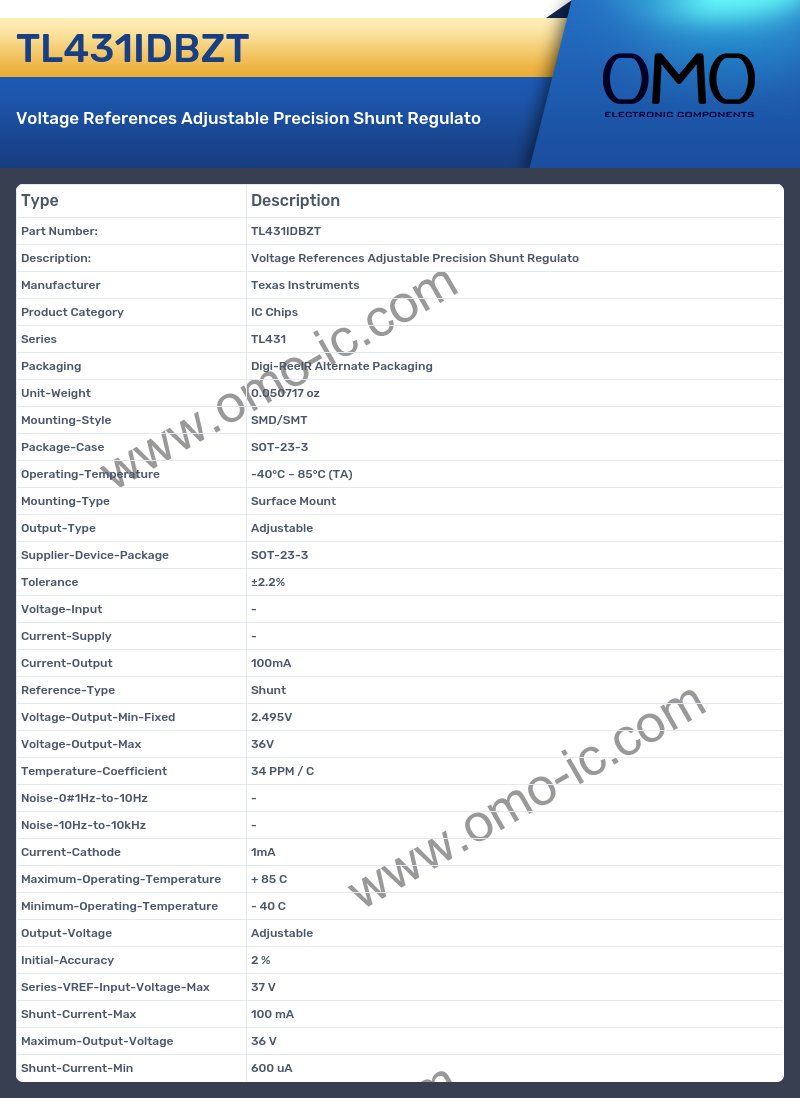

TL431IDBZT Specifications
A: At what frequency does the Series?
Q: The product Series is TL431.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.050717 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOT-23-3.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C (TA).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: Is the cutoff frequency of the product Output-Type?
Q: Yes, the product's Output-Type is indeed Adjustable
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-23-3
A: What is the Tolerance of the product?
Q: The Tolerance of the product is ±2.2%.
A: What is the Voltage-Input of the product?
Q: The Voltage-Input of the product is -.
A: At what frequency does the Current-Supply?
Q: The product Current-Supply is -.
A: Is the cutoff frequency of the product Reference-Type?
Q: Yes, the product's Reference-Type is indeed Shunt
A: What is the Voltage-Output-Min-Fixed of the product?
Q: The Voltage-Output-Min-Fixed of the product is 2.495V.
A: Is the cutoff frequency of the product Temperature-Coefficient?
Q: Yes, the product's Temperature-Coefficient is indeed 34 PPM / C
A: Is the cutoff frequency of the product Noise-0#1Hz-to-10Hz?
Q: Yes, the product's Noise-0#1Hz-to-10Hz is indeed -
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Output-Voltage of the product?
Q: The Output-Voltage of the product is Adjustable.
A: At what frequency does the Initial-Accuracy?
Q: The product Initial-Accuracy is 2 %.
A: At what frequency does the Series-VREF-Input-Voltage-Max?
Q: The product Series-VREF-Input-Voltage-Max is 37 V.
A: What is the Shunt-Current-Max of the product?
Q: The Shunt-Current-Max of the product is 100 mA.
A: Is the cutoff frequency of the product Maximum-Output-Voltage?
Q: Yes, the product's Maximum-Output-Voltage is indeed 36 V
A: What is the Shunt-Current-Min of the product?
Q: The Shunt-Current-Min of the product is 600 uA.
