TL497ACDR

TL497ACDR Overview

Product belongs to the TL497A series. Type: Charge Pump Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-14 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Down. Supplier device package: 14-SOIC Number-of-Outputs: 1 Topology: Buck, Boost feedback This product features 'Frequency-Switching' at - for optimal performance. The Positive or Negative. Minimum fixed output voltage is ±1.2V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 12V. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 30 V 11 mA is 92 nA. Input Voltage Range: 4.5 V to 12 V Maximum Input Voltage: 12 V Output current: 500 mA Switching frequency is - The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

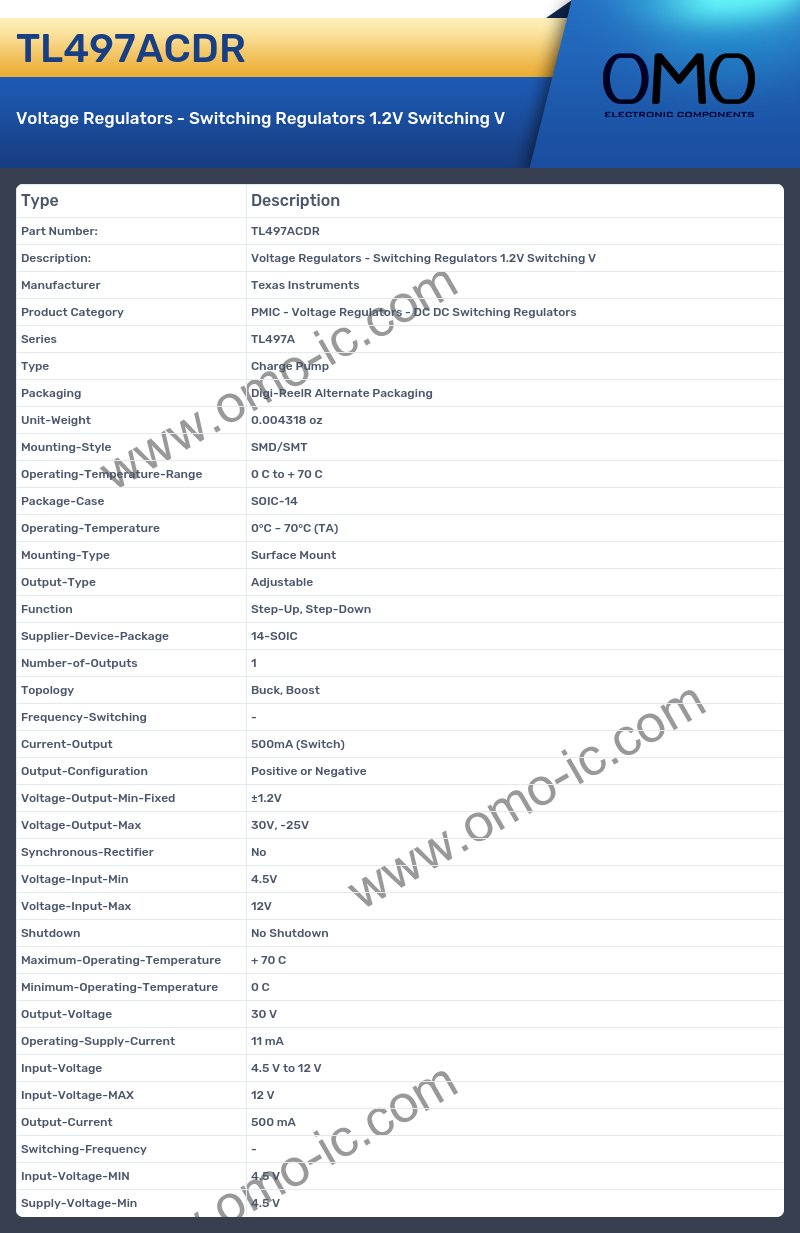

TL497ACDR Image

TL497ACDR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TL497A
• Type Charge Pump
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Down
• Supplier-Device-Package 14-SOIC
• Number-of-Outputs 1
• Topology Buck, Boost
• Frequency-Switching -
• Current-Output 500mA (Switch)
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed ±1.2V
• Voltage-Output-Max 30V, -25V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 12V
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 30 V
• Operating-Supply-Current 11 mA
• Input-Voltage 4.5 V to 12 V
• Input-Voltage-MAX 12 V
• Output-Current 500 mA
• Switching-Frequency -
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
