TL7757CDR

TL7757CDR Overview

Product belongs to the TL7757 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: 8-SOIC The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 5 μs Maximum Propagation Delay. This product's 4.55V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 1400 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 7 V Minimum supply voltage is 1 V This product includes No Watchdog This product's 4.55 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The 4.67 V is 2.35 V. 4.55 V is set to 2.29 V.

TL7757CDR Image

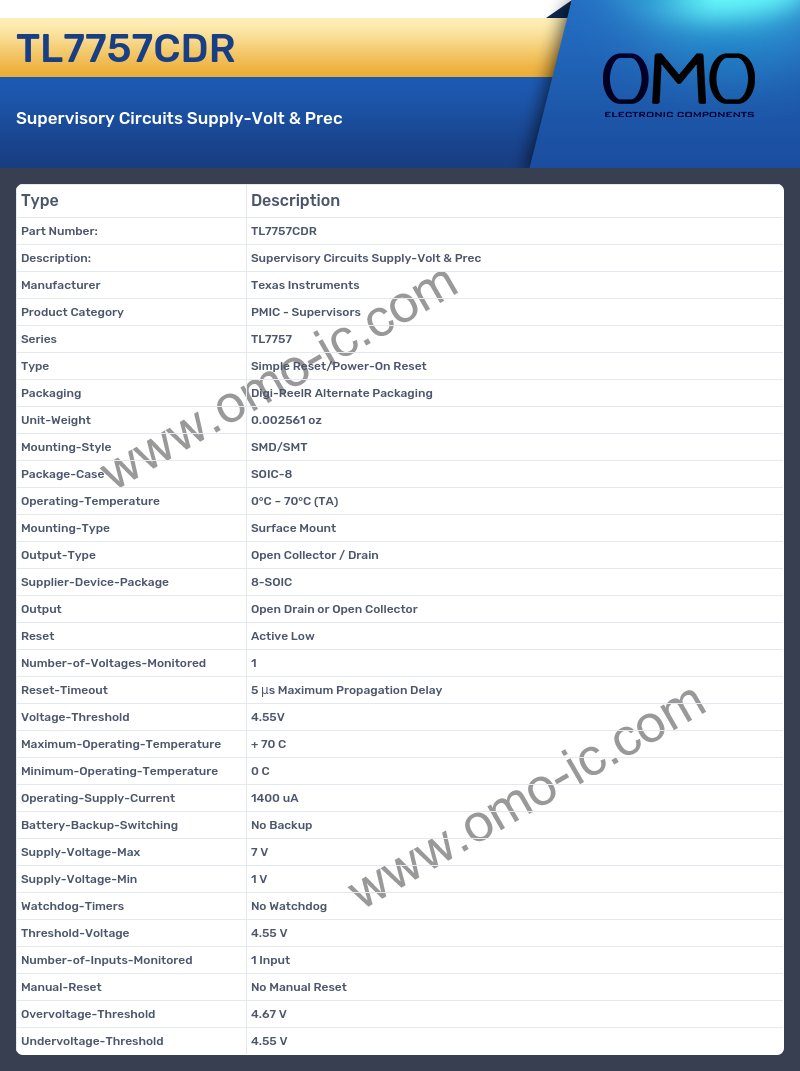

TL7757CDR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TL7757
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package 8-SOIC
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 5 μs Maximum Propagation Delay
• Voltage-Threshold 4.55V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 1400 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 7 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 4.55 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Overvoltage-Threshold 4.67 V
• Undervoltage-Threshold 4.55 V
