TLC04CD

TLC04CD Overview

Product belongs to the TLC04 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Number of channels: 1 Channel Voltage Supply Range: ±2.25 V ~ 6 V Supplier device package: 8-SOIC Butterworth, Low Pass Switched Capacitor filter type. Frequency-Cutoff: 30kHz Number of filters: 1 Filter order is 4th Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 9 V supply voltage for reliable performance. Frequency range from 40 KHz Maximum supply voltage of 12 V Minimum supply voltage is 5 V

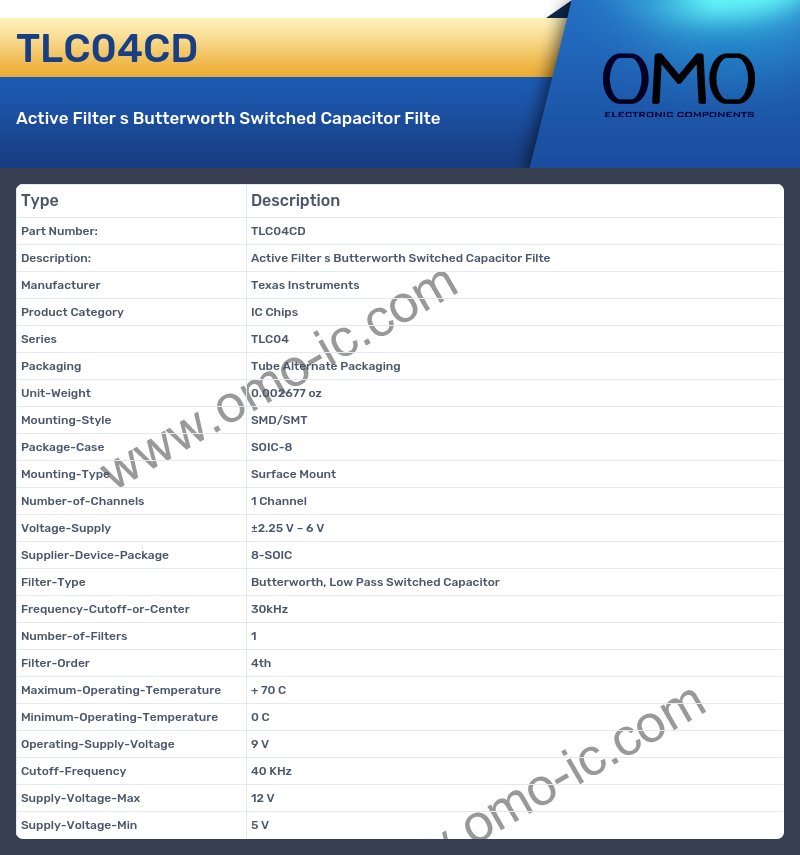

TLC04CD Image

TLC04CD Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series TLC04
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Voltage-Supply ±2.25 V ~ 6 V
• Supplier-Device-Package 8-SOIC
• Filter-Type Butterworth, Low Pass Switched Capacitor
• Frequency-Cutoff-or-Center 30kHz
• Number-of-Filters 1
• Filter-Order 4th
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 9 V
• Cutoff-Frequency 40 KHz
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 5 V
