TLC14ID

TLC14ID Overview

Product belongs to the TLC14 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Number of channels: 1 Channel Voltage Supply Range: 5 V ~ 12 V Supplier device package: 8-SOIC Butterworth, Low Pass Switched Capacitor filter type. Frequency-Cutoff: 30kHz Number of filters: 1 Filter order is 4th Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 9 V supply voltage for reliable performance. Frequency range from 20 kHz Maximum supply voltage of 12 V Minimum supply voltage is 5 V

TLC14ID Image

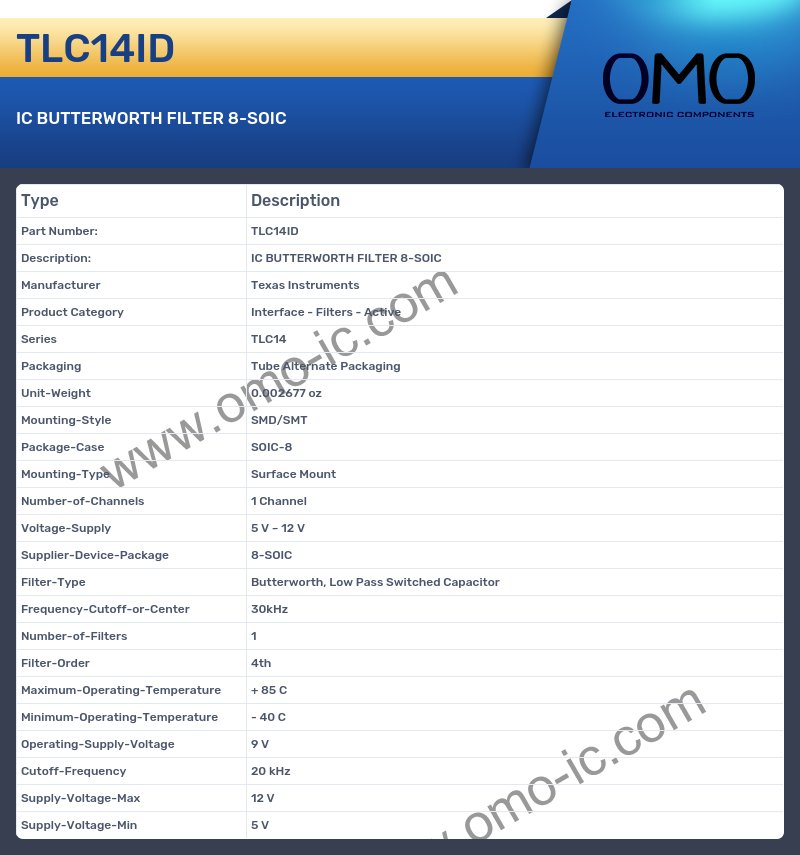

TLC14ID Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Filters - Active
• Series TLC14
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Voltage-Supply 5 V ~ 12 V
• Supplier-Device-Package 8-SOIC
• Filter-Type Butterworth, Low Pass Switched Capacitor
• Frequency-Cutoff-or-Center 30kHz
• Number-of-Filters 1
• Filter-Order 4th
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 9 V
• Cutoff-Frequency 20 kHz
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 5 V
