TLC2272CP

TLC2272CP Overview

Product belongs to the TLC2272 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Trade name: LinCMOS. LinCMOS is the technology used. Number of channels: 2 Channel The amplifier is of Low Noise Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3 mA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4.4 V PDIP-8 Input bias current of 60 pA The 2.5 mV. The Negative Rail to Positive Rail - 1 V. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 50 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.0006 pA/sqrt Hz. Maximum dual supply voltage: +/- 8 V Minimum dual supply voltage of +/- 2.2 V

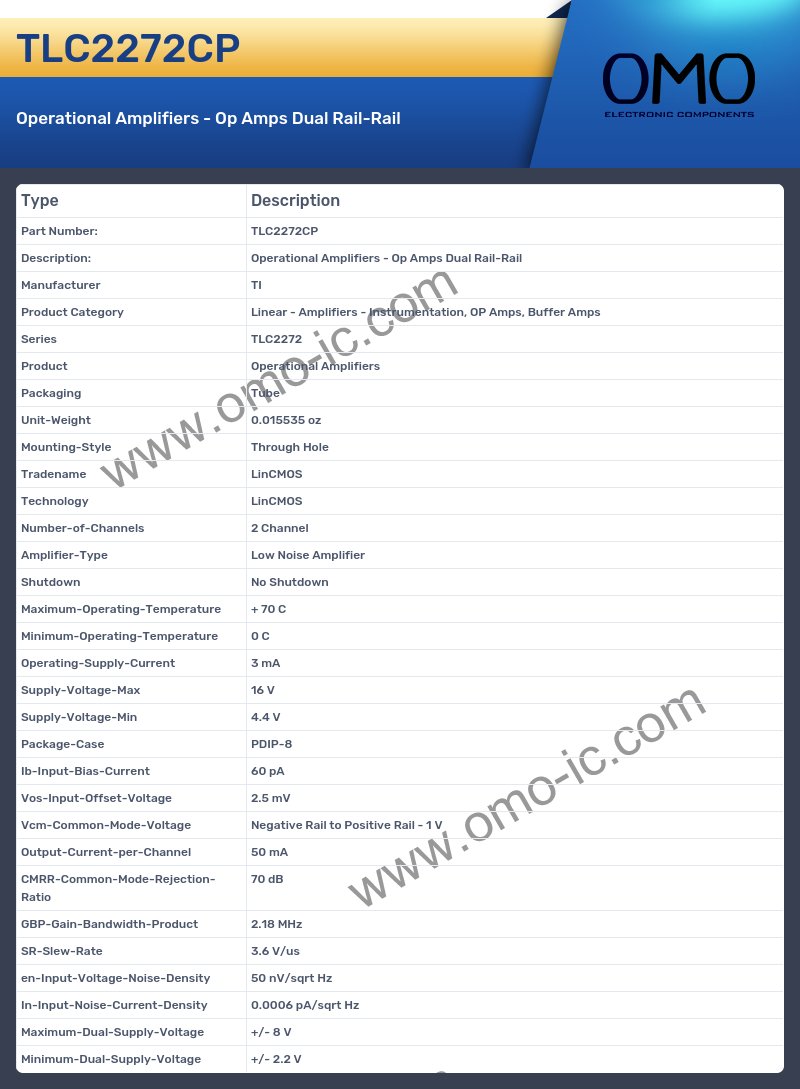

TLC2272CP Image

TLC2272CP Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TLC2272
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Tradename LinCMOS
• Technology LinCMOS
• Number-of-Channels 2 Channel
• Amplifier-Type Low Noise Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3 mA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.4 V
• Package-Case PDIP-8
• Ib-Input-Bias-Current 60 pA
• Vos-Input-Offset-Voltage 2.5 mV
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1 V
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 2.18 MHz
• SR-Slew-Rate 3.6 V/us
• en-Input-Voltage-Noise-Density 50 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.0006 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 8 V
• Minimum-Dual-Supply-Voltage +/- 2.2 V
