TLC339MDR

TLC339MDR Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004706 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Open-Drain Number of channels: 4 Channel Supplier device package: 14-SOIC Voltage supply range: 4 V ~ 16 V 4 element 175μA maximum quiescent current. Maximum propagation delay: 4.5μs Hysteresis value of - 1 us response time Power-off control: No Shutdown Power-off control: 950 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 20 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4 V General Purpose comparator type Input bias current of 30 nA The 5 mV. 6 mA

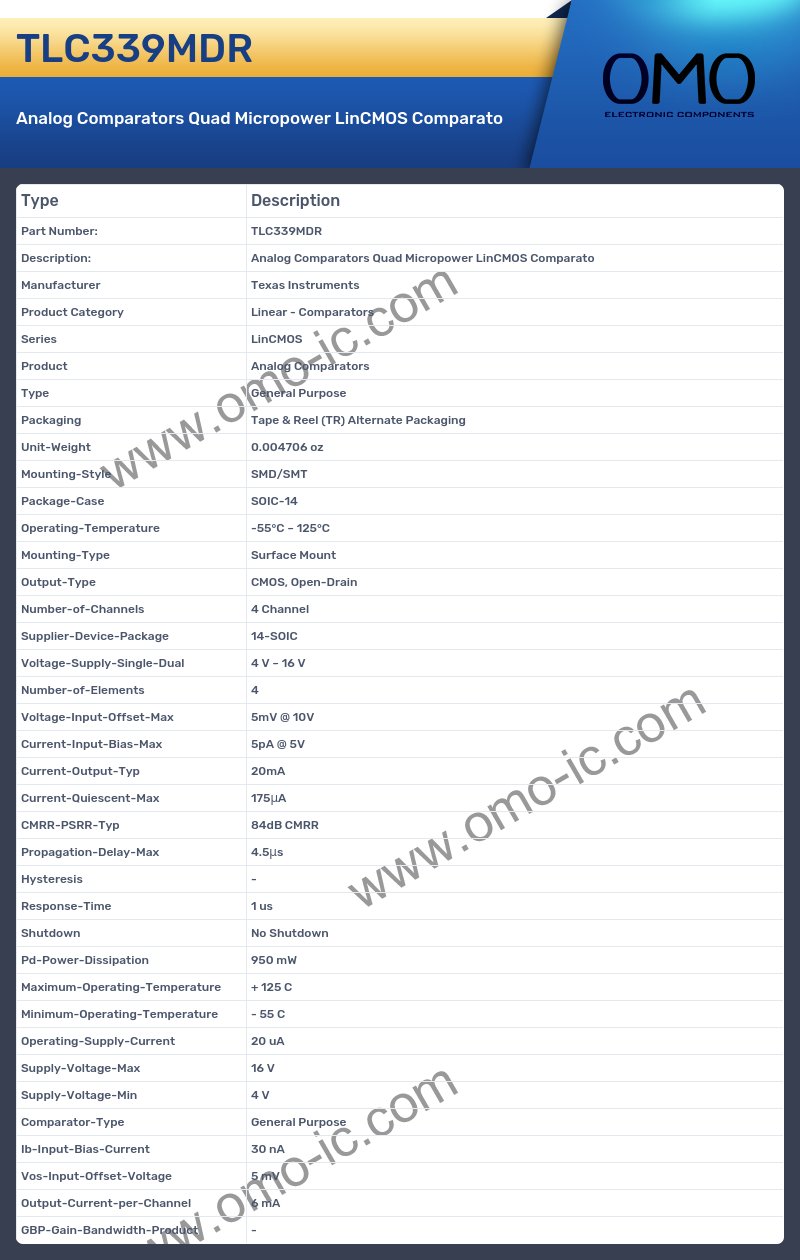

TLC339MDR Image

TLC339MDR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004706 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Open-Drain
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Single-Dual 4 V ~ 16 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 10V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 175μA
• CMRR-PSRR-Typ 84dB CMRR
• Propagation-Delay-Max 4.5μs
• Hysteresis -
• Response-Time 1 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 950 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 20 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 30 nA
• Vos-Input-Offset-Voltage 5 mV
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
