TLC545CFN Overview

Product belongs to the TLC545 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 20 Channel Supplier device package: 28-PLCC (11.51x11.51) This product's 76k. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 15 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial SPI interface type Number-of-Converters: 1 Converter 76 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.5 V Digital Supply Voltage: 4.75 V to 5.5 V Integral Nonlinearity: +/- 0.5 LSB

TLC545CFN Image

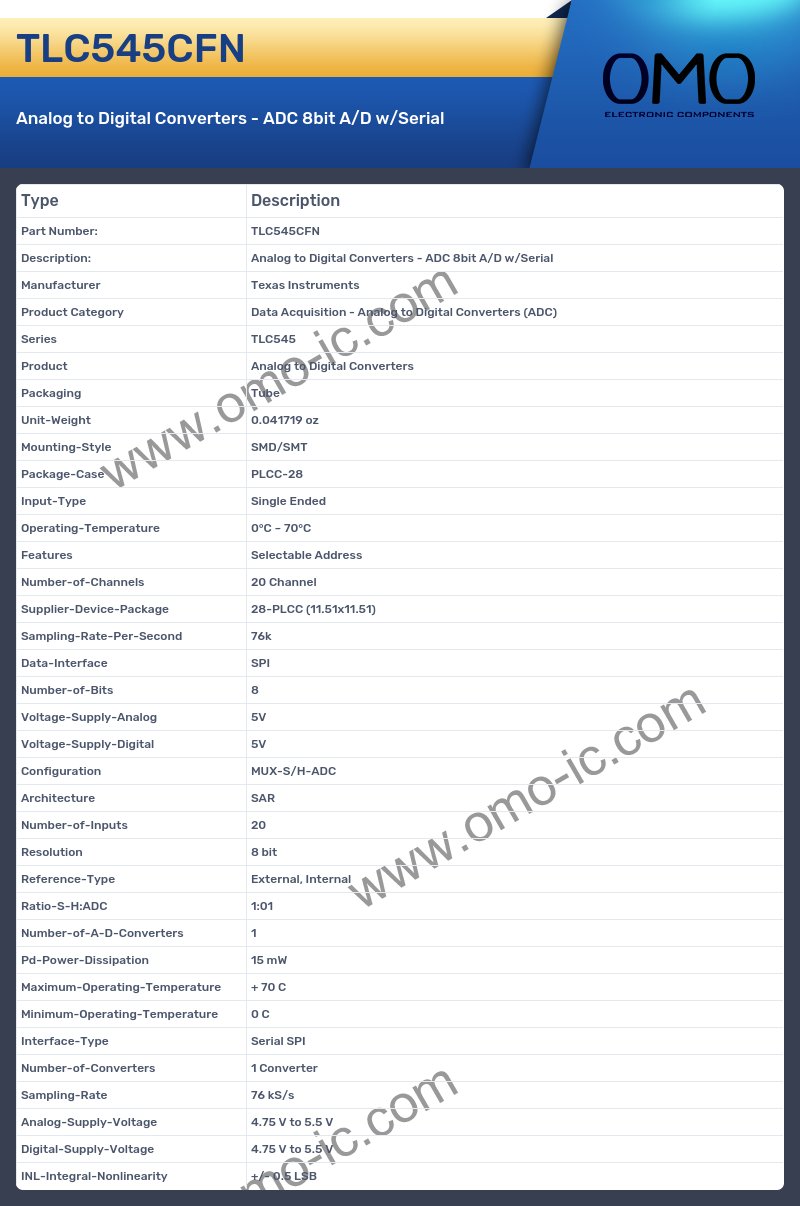

TLC545CFN Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC545
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Selectable Address
• Number-of-Channels 20 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Sampling-Rate-Per-Second 76k
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 20
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 15 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 76 kS/s
• Analog-Supply-Voltage 4.75 V to 5.5 V
• Digital-Supply-Voltage 4.75 V to 5.5 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
