TLC549IPSR Overview

Product belongs to the TLC549 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004325 oz SMD/SMT Mounting-Style SOP-8 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 8-SO This product's 40k. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 3 V ~ 6 V. The Voltage Supply Digital for this product is 3 V ~ 6 V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Number-of-Converters: 1 Converter 40 kS/s Sampling Rate Analog supply voltage: 3 V to 6 V Digital Supply Voltage: 3 V to 6 V Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.5 LSB

TLC549IPSR Image

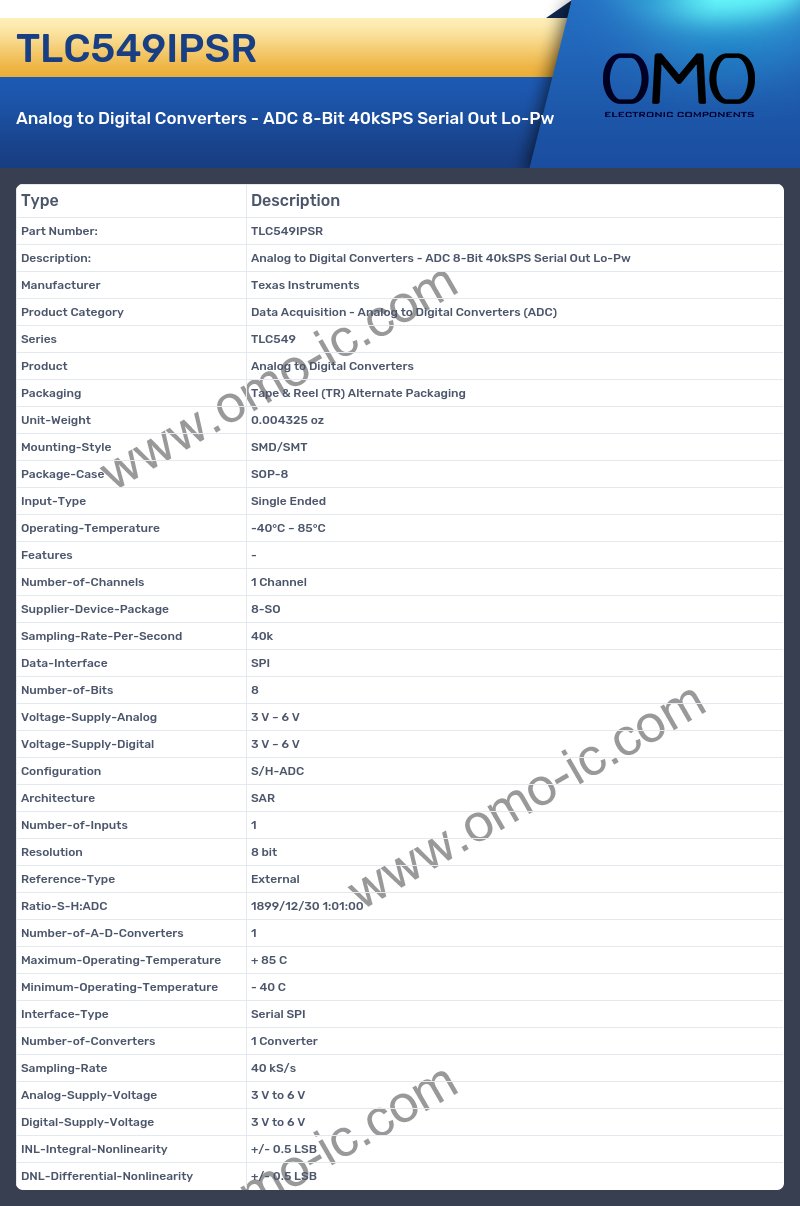

TLC549IPSR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC549
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004325 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-8
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SO
• Sampling-Rate-Per-Second 40k
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 3 V ~ 6 V
• Voltage-Supply-Digital 3 V ~ 6 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 40 kS/s
• Analog-Supply-Voltage 3 V to 6 V
• Digital-Supply-Voltage 3 V to 6 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.5 LSB
