TLC5940RHB

TLC5940RHB Overview

Product belongs to the - series. Type: Linear Tube Alternate Packaging is the packaging method for this product 32-VFQFN Exposed Pad This product's 30MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 32-VQFN (5x5) Number-of-Outputs: 16 Current-Output-Channel is 120mA This product has Yes. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 3V required for voltage supply. Output voltage: 17V Dimming control is done through - communication.

TLC5940RHB Image

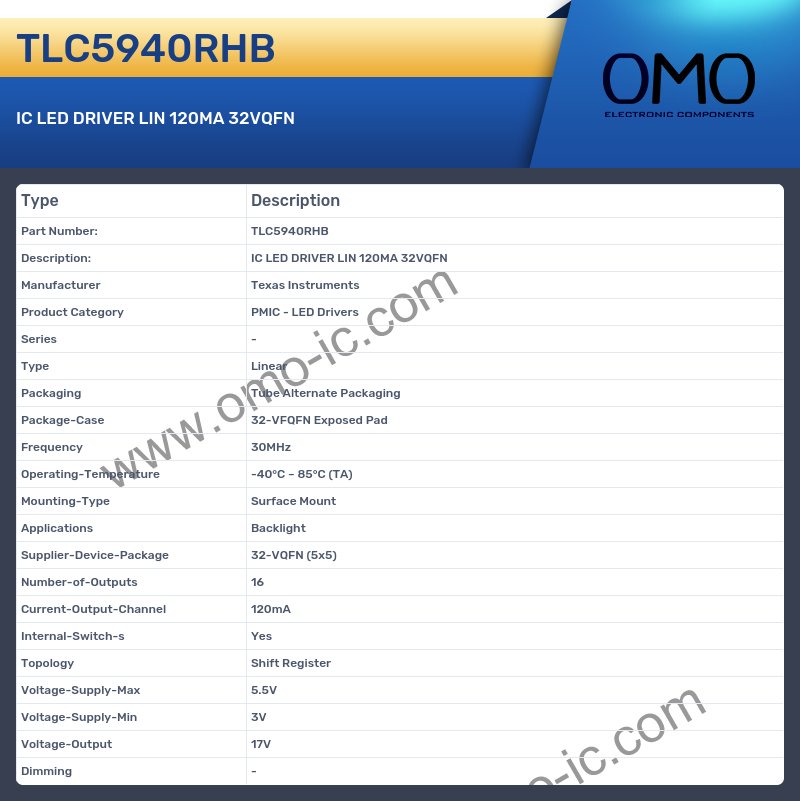

TLC5940RHB Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series -
• Type Linear
• Packaging Tube Alternate Packaging
• Package-Case 32-VFQFN Exposed Pad
• Frequency 30MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 32-VQFN (5x5)
• Number-of-Outputs 16
• Current-Output-Channel 120mA
• Internal-Switch-s Yes
• Topology Shift Register
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 3V
• Voltage-Output 17V
• Dimming -
