| Mfr. #: | TLC5952DAP |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | LED Display Drivers 24-Channel Constant Current LED Drv |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TLC5952DAP Datasheet |
Product belongs to the TLC5952 series. Type: Linear Tube Alternate Packaging is the packaging method for this product Weight of 0.006388 oz SMD/SMT Mounting-Style HTSSOP-32 This product's 35MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Signage applications for maximum usability Supplier device package: 32-HTSSOP Number-of-Outputs: 24 Current-Output-Channel is 26.2mA, 35mA This product has Yes. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 3V required for voltage supply. Output voltage: 15V Dimming control is done through - communication. Power-off control: 2765 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V to 5.5 V supply voltage for reliable performance. Maximum supply current: 50 mA High-Level-Output-Current of - 1 mA 1 mA low-level output current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

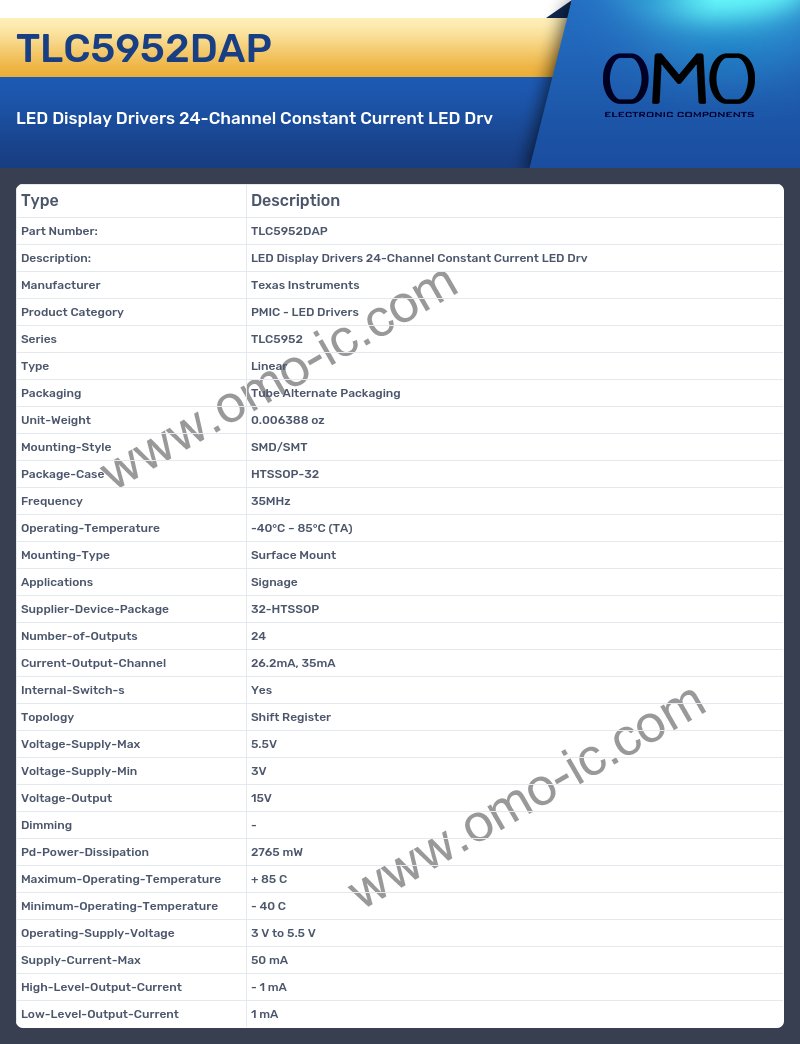

TLC5952DAP Specifications
