| Mfr. #: | TLV431BCDBVT |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Voltage References Lo-Vtg Adj Precision Shunt Regulato |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TLV431BCDBVT Datasheet |
Product belongs to the TLV431B series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 Tolerance of ±0.5% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 1.24V . - is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: Adjustable Initial accuracy: 0.5 % Maximum input voltage of 7 V for Series VREF. Maximum shunt current of 15 mA Maximum output voltage is 6 V . This product has a minimum 80 uA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

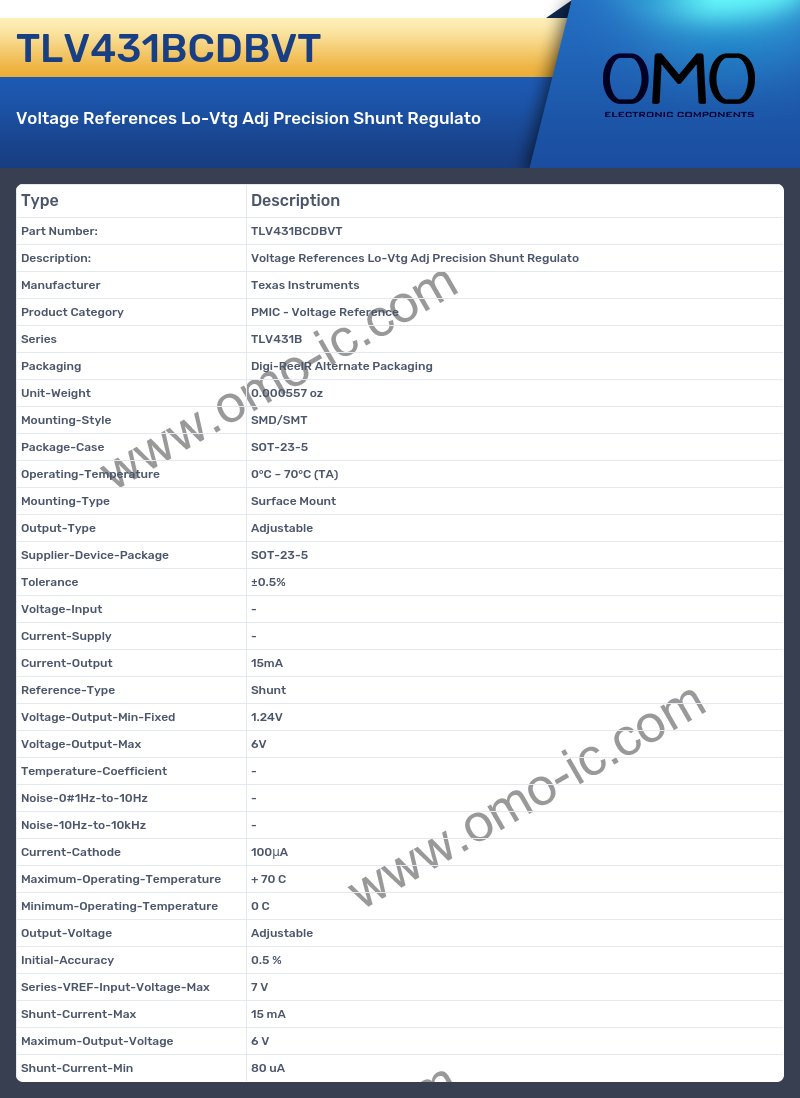

TLV431BCDBVT Specifications
