TMS320F28023DAT

TMS320F28023DAT Overview

Product belongs to the C2000 C28x Piccolo series. Tray is the packaging method for this product Weight of 0.007189 oz SMD/SMT Mounting-Style Trade name: Piccolo. TSSOP-38 Operational temperature range: -40°C ~ 105°C (TA) Supplier device package: 38-TSSOP This product has 20 I/O ports for versatile connectivity. Operating frequency: 50MHz Program memory type: FLASH I2C, SCI, SPI, UART/USART interface Supply Voltage: 1.71 V ~ 1.995 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. I2C SCI SPI interface type Processor Core: C28x This product is powered by the TMS320F2x Processor-Series, providing high performance and efficiency. The 32 bit. Maximum supply voltage of 3.63 V Minimum supply voltage is 2.97 V Maximum clock frequency of 50 MHz This product has 20 I/O connections. This product has a 12 kB data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters.

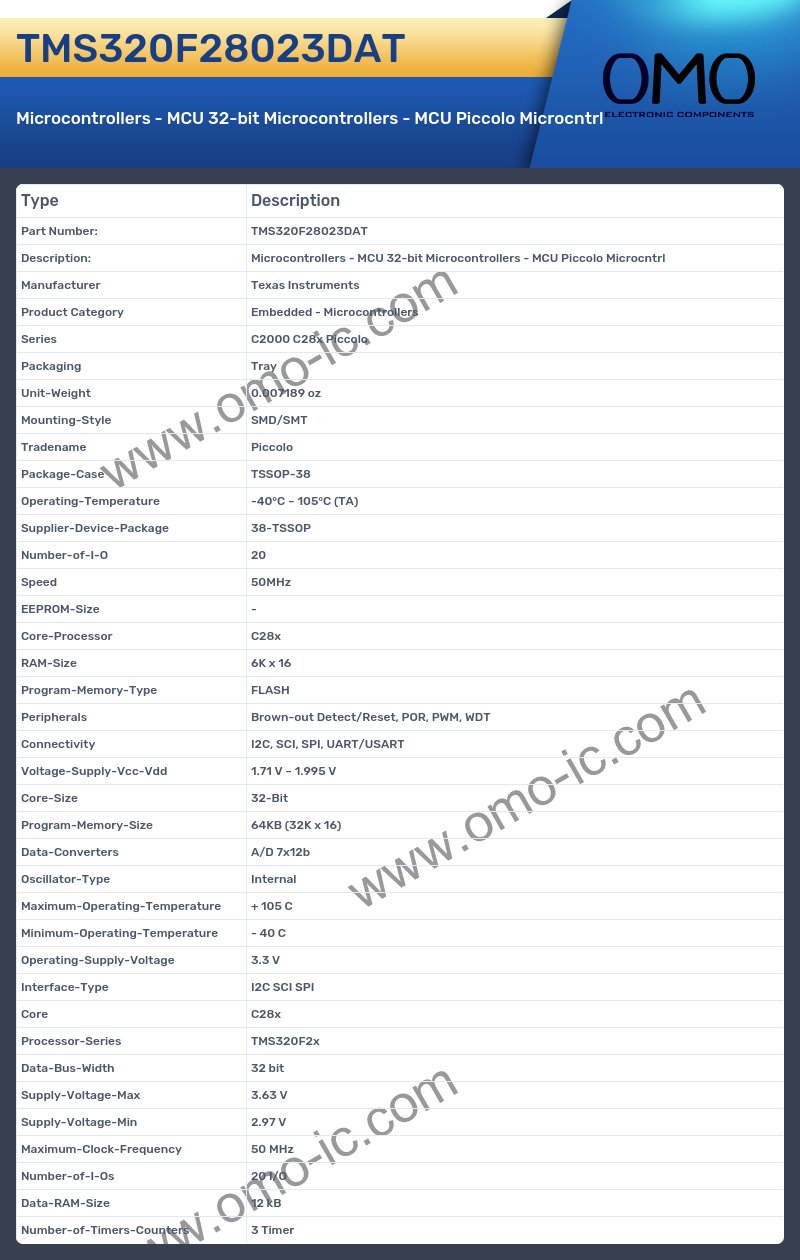

TMS320F28023DAT Image

TMS320F28023DAT Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series C2000 C28x Piccolo
• Packaging Tray
• Unit-Weight 0.007189 oz
• Mounting-Style SMD/SMT
• Tradename Piccolo
• Package-Case TSSOP-38
• Operating-Temperature -40°C ~ 105°C (TA)
• Supplier-Device-Package 38-TSSOP
• Number-of-I-O 20
• Speed 50MHz
• EEPROM-Size -
• Core-Processor C28x
• RAM-Size 6K x 16
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SCI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.71 V ~ 1.995 V
• Core-Size 32-Bit
• Program-Memory-Size 64KB (32K x 16)
• Data-Converters A/D 7x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Interface-Type I2C SCI SPI
• Core C28x
• Processor-Series TMS320F2x
• Data-Bus-Width 32 bit
• Supply-Voltage-Max 3.63 V
• Supply-Voltage-Min 2.97 V
• Maximum-Clock-Frequency 50 MHz
• Number-of-I-Os 20 I/O
• Data-RAM-Size 12 kB
• Number-of-Timers-Counters 3 Timer
