TPD4E1B06DCKR

TPD4E1B06DCKR Overview

Product belongs to the TPD4E1B06 series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 6-TSSOP, SC-88, SOT-363 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: SC-70-6 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.5V (Max). The Voltage-Breakdown-Min is 7V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 45 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 7 V Clamping-Voltage: 14.5 V The Cd-Diode-Capacitance is 0.7 pF 5.5 V working voltage Polarity: Bidirectional 3 A of IPP, Peak Pulse, and Current 12 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 5.5 V supply voltage for reliable performance.

TPD4E1B06DCKR Image

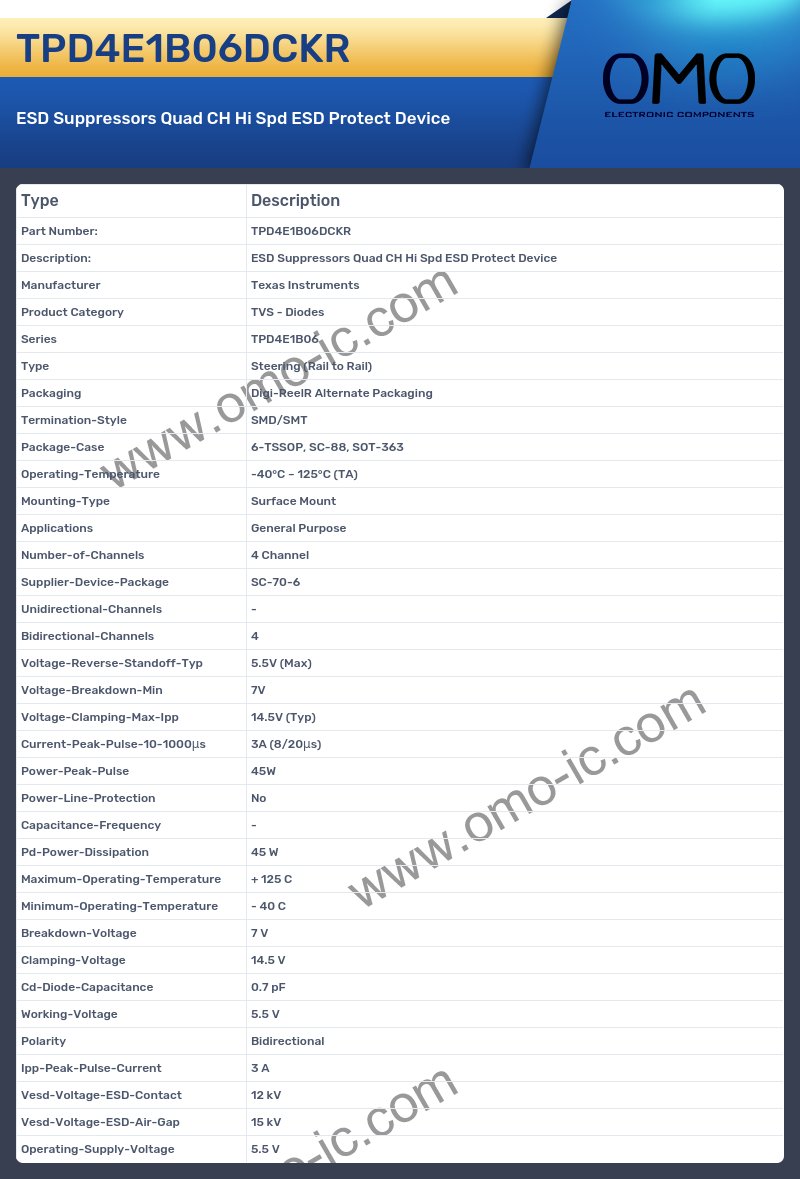

TPD4E1B06DCKR Specifications

• Manufacturer Texas Instruments
• Product Category TVS - Diodes
• Series TPD4E1B06
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 6-TSSOP, SC-88, SOT-363
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package SC-70-6
• Unidirectional-Channels -
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 5.5V (Max)
• Voltage-Breakdown-Min 7V
• Voltage-Clamping-Max-Ipp 14.5V (Typ)
• Current-Peak-Pulse-10-1000μs 3A (8/20μs)
• Power-Peak-Pulse 45W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 45 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 7 V
• Clamping-Voltage 14.5 V
• Cd-Diode-Capacitance 0.7 pF
• Working-Voltage 5.5 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 3 A
• Vesd-Voltage-ESD-Contact 12 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 5.5 V
