TPIC1502DW

TPIC1502DW Overview

Product belongs to the - series. Tube is the packaging method for this product 24-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 24-SOIC This product uses an - FET-Type transistor. 20V This product has an 98pF @ 14V value of 300pF @ 25V. This product's Logic Level Gate. 1.5A continuous drain-ID current at 25°C; This product has an 300 mOhm @ 1.5A, 10V of 12 Ohm @ 150mA, 0V.

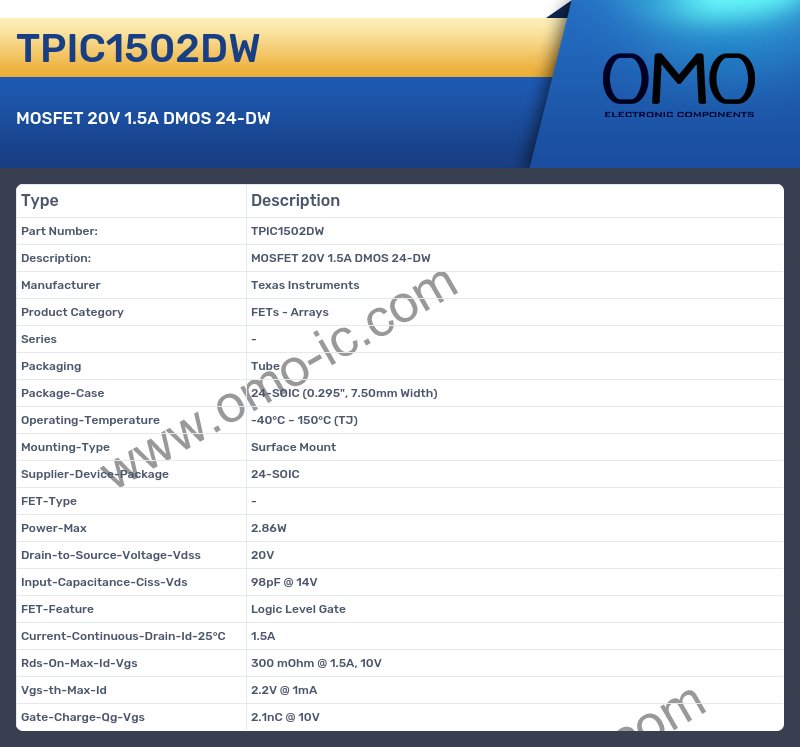

TPIC1502DW Image

TPIC1502DW Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series -
• Packaging Tube
• Package-Case 24-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 24-SOIC
• FET-Type -
• Power-Max 2.86W
• Drain-to-Source-Voltage-Vdss 20V
• Input-Capacitance-Ciss-Vds 98pF @ 14V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 1.5A
• Rds-On-Max-Id-Vgs 300 mOhm @ 1.5A, 10V
• Vgs-th-Max-Id 2.2V @ 1mA
• Gate-Charge-Qg-Vgs 2.1nC @ 10V
