| Mfr. #: | TPN3021 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | TVS Diode Arrays 38V 300mA Triple |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TPN3021 Datasheet |
Product belongs to the TPN, TRISIL series. Type: Tripolar Overvoltage Protection for Network Interface Tube Alternate Packaging is the packaging method for this product Weight of 0.002822 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 1.65 mm. 5(Max) mm length of the product The 4(Max) mm is at most 7.6 mm. 8-SOIC (0.154", 3.90mm Width) The capacitance of this product is 16pF. Number of channels: 2 Channel 3 element The Voltage-Breakover of the product is 38V. The Voltage-Off-State is 28V. 100A of Current-Peak-Pulse-8-20μs; 30mA Current Holding-Ih; Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 30 A Peak Surge Current The Cd-Diode-Capacitance is 16 pF 28 V working voltage Polarity: Bidirectional
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

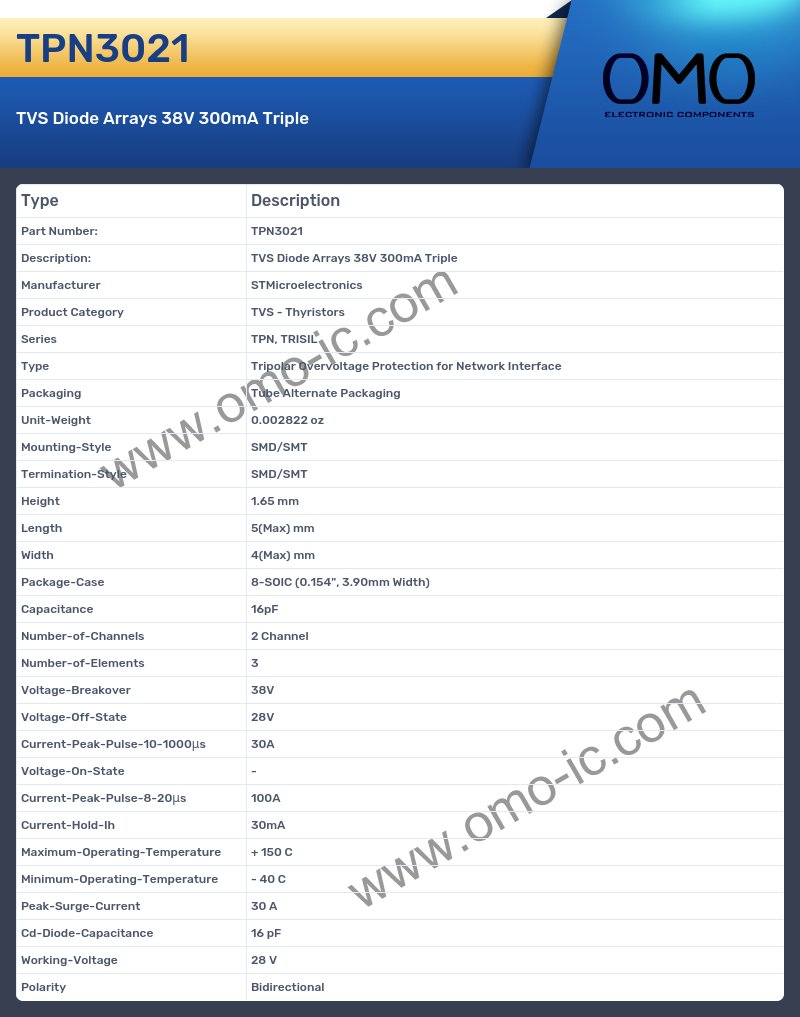

TPN3021 Specifications
A: At what frequency does the Series?
Q: The product Series is TPN, TRISIL.
A: At what frequency does the Type?
Q: The product Type is Tripolar Overvoltage Protection for Network Interface.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002822 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Termination-Style?
Q: The product Termination-Style is SMD/SMT.
A: What is the Height of the product?
Q: The Height of the product is 1.65 mm.
A: Is the cutoff frequency of the product Length?
Q: Yes, the product's Length is indeed 5(Max) mm
A: Is the cutoff frequency of the product Width?
Q: Yes, the product's Width is indeed 4(Max) mm
A: What is the Package-Case of the product?
Q: The Package-Case of the product is 8-SOIC (0.154", 3.90mm Width).
A: Is the cutoff frequency of the product Capacitance?
Q: Yes, the product's Capacitance is indeed 16pF
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 2 Channel.
A: At what frequency does the Number-of-Elements?
Q: The product Number-of-Elements is 3.
A: Is the cutoff frequency of the product Voltage-Breakover?
Q: Yes, the product's Voltage-Breakover is indeed 38V
A: Is the cutoff frequency of the product Voltage-Off-State?
Q: Yes, the product's Voltage-Off-State is indeed 28V
A: At what frequency does the Current-Peak-Pulse-8-20μs?
Q: The product Current-Peak-Pulse-8-20μs is 100A.
A: Is the cutoff frequency of the product Current-Hold-Ih?
Q: Yes, the product's Current-Hold-Ih is indeed 30mA
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: At what frequency does the Peak-Surge-Current?
Q: The product Peak-Surge-Current is 30 A.
A: At what frequency does the Cd-Diode-Capacitance?
Q: The product Cd-Diode-Capacitance is 16 pF.
A: At what frequency does the Working-Voltage?
Q: The product Working-Voltage is 28 V.
A: What is the Polarity of the product?
Q: The Polarity of the product is Bidirectional.
