TPS2003CDRCR

TPS2003CDRCR Overview

Product belongs to the TPS2003C series. This product is categorized as USB Current Limited Power Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001386 oz SMD/SMT Mounting-Style VSON-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 10-VSON (3x3) The Ratio-Input:Output for this product is 1899/12/30 1:02:00. Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 70 mOhm. Voltage-Load range is 4.5 V ~ 5.5 V. Our product delivers a 2A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Output current: 2 A The TPS2003CEVM-016. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Max on-resistance of 84 mOhms Maximum off time: 3.25 ms Maximum on-time: 2.4 ms

TPS2003CDRCR Image

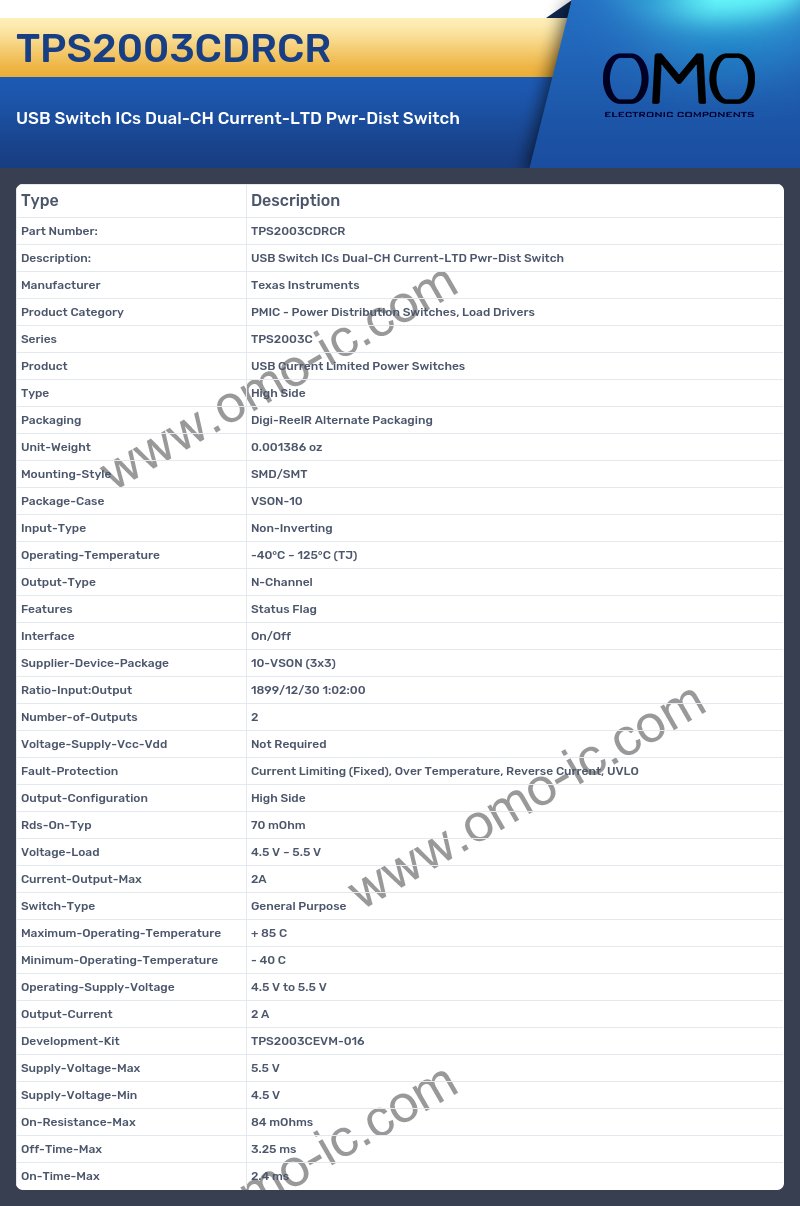

TPS2003CDRCR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2003C
• Product USB Current Limited Power Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001386 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-10
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 10-VSON (3x3)
• Ratio-Input:Output 1899/12/30 1:02:00
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
• Output-Configuration High Side
• Rds-On-Typ 70 mOhm
• Voltage-Load 4.5 V ~ 5.5 V
• Current-Output-Max 2A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Output-Current 2 A
• Development-Kit TPS2003CEVM-016
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• On-Resistance-Max 84 mOhms
• Off-Time-Max 3.25 ms
• On-Time-Max 2.4 ms
