TPS2075DBR

TPS2075DBR Overview

Product belongs to the TPS2075 series. This product is categorized as USB Current Limited Power Switches Type: High Side Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.006081 oz SMD/SMT Mounting-Style SSOP-24 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 24-SSOP The Ratio-Input:Output for this product is 1899/12/30 1:04:00. Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 100 mOhm. Voltage-Load range is 4.5 V ~ 5.5 V. Our product delivers a 100mA of 50mA for efficient power management. The Switch-Type is USB Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Max on-resistance of 500 mOhms

TPS2075DBR Image

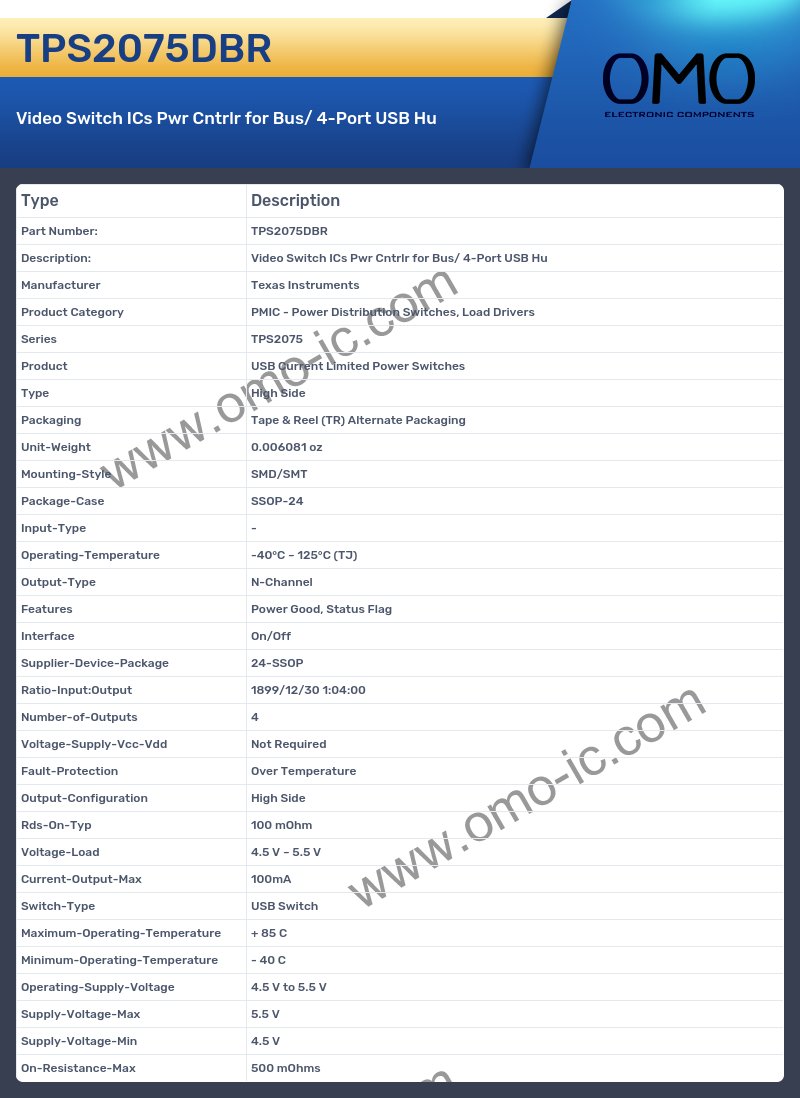

TPS2075DBR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2075
• Product USB Current Limited Power Switches
• Type High Side
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.006081 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Input-Type -
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Power Good, Status Flag
• Interface On/Off
• Supplier-Device-Package 24-SSOP
• Ratio-Input:Output 1899/12/30 1:04:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 100 mOhm
• Voltage-Load 4.5 V ~ 5.5 V
• Current-Output-Max 100mA
• Switch-Type USB Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• On-Resistance-Max 500 mOhms
