TPS2115PW

TPS2115PW Overview

Product belongs to the TPS2115 series. Type: Source Selector Switch Tube Alternate Packaging is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile Handheld/Mobile Devices applications for maximum usability Voltage Supply Range: 2.8 V ~ 5.5 V Supplier device package: 8-TSSOP The Ratio-Input:Output for this product is 1899/12/30 2:01:00. This product has a 55μA of 200μA. Number-of-Outputs: 1 Output This product has Yes. Our product delivers a 1.25A of 50mA for efficient power management. This product uses an N-Channel FET-Type transistor. The 1ms is 400ns. The 5ms of this product is 300ns. Power-off control: 386.84 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.8 V to 5.5 V supply voltage for reliable performance. Output current: 1.25 A Maximum supply voltage of 5.5 V Minimum supply voltage is 2.8 V Max on-resistance of 84 mOhms This product's 0.63 A to 1.25 A feature is adjustable.

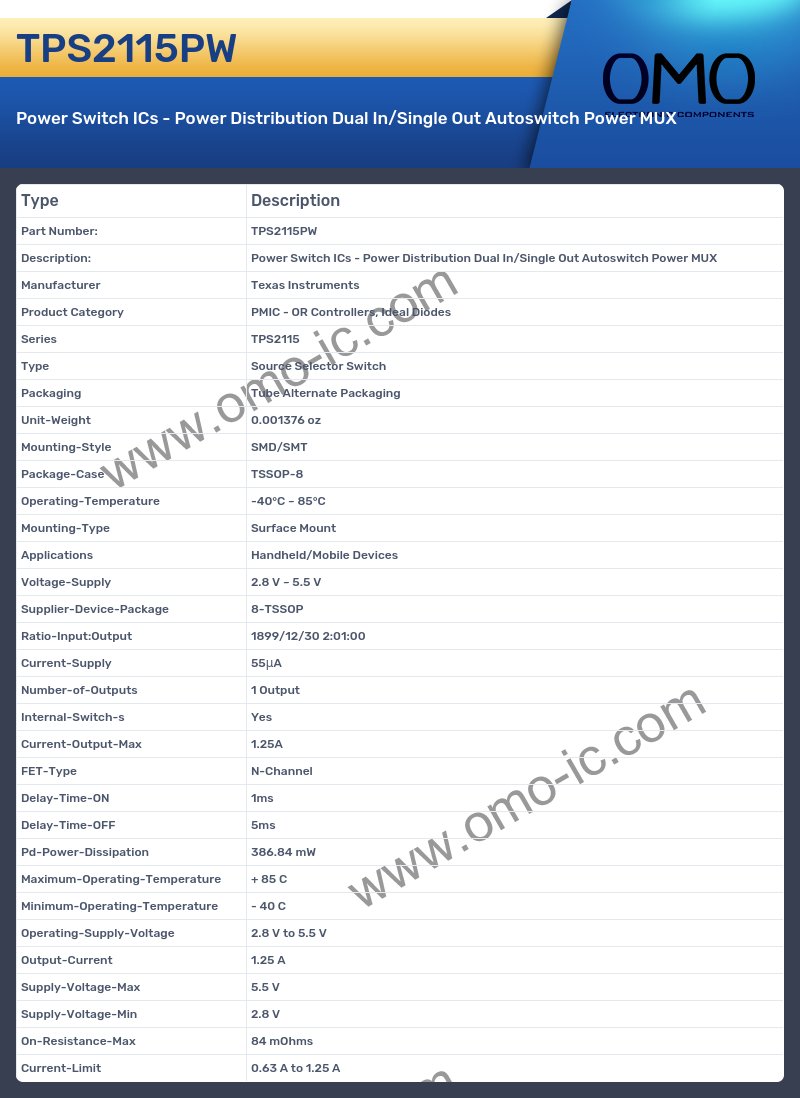

TPS2115PW Image

TPS2115PW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - OR Controllers, Ideal Diodes
• Series TPS2115
• Type Source Selector Switch
• Packaging Tube Alternate Packaging
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Applications Handheld/Mobile Devices
• Voltage-Supply 2.8 V ~ 5.5 V
• Supplier-Device-Package 8-TSSOP
• Ratio-Input:Output 1899/12/30 2:01:00
• Current-Supply 55μA
• Number-of-Outputs 1 Output
• Internal-Switch-s Yes
• Current-Output-Max 1.25A
• FET-Type N-Channel
• Delay-Time-ON 1ms
• Delay-Time-OFF 5ms
• Pd-Power-Dissipation 386.84 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.8 V to 5.5 V
• Output-Current 1.25 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.8 V
• On-Resistance-Max 84 mOhms
• Current-Limit 0.63 A to 1.25 A
