TPS22967DSGR

TPS22967DSGR Overview

Product belongs to the TPS22967 series. This product is categorized as Load Switches Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-WFDFN Exposed Pad The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-WSON (2x2) The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: 0.8 V ~ 5.5 V The High Side. The 22 mOhm. Voltage-Load range is 2.5 V ~ 5.5 V. Our product delivers a 4A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Output current: 4 A Maximum supply voltage of 5.5 V Minimum supply voltage is 0.8 V Max on-resistance of 35 mOhms Maximum off time: 80 us This product's 4 A feature is adjustable. Maximum on-time: 2200 us

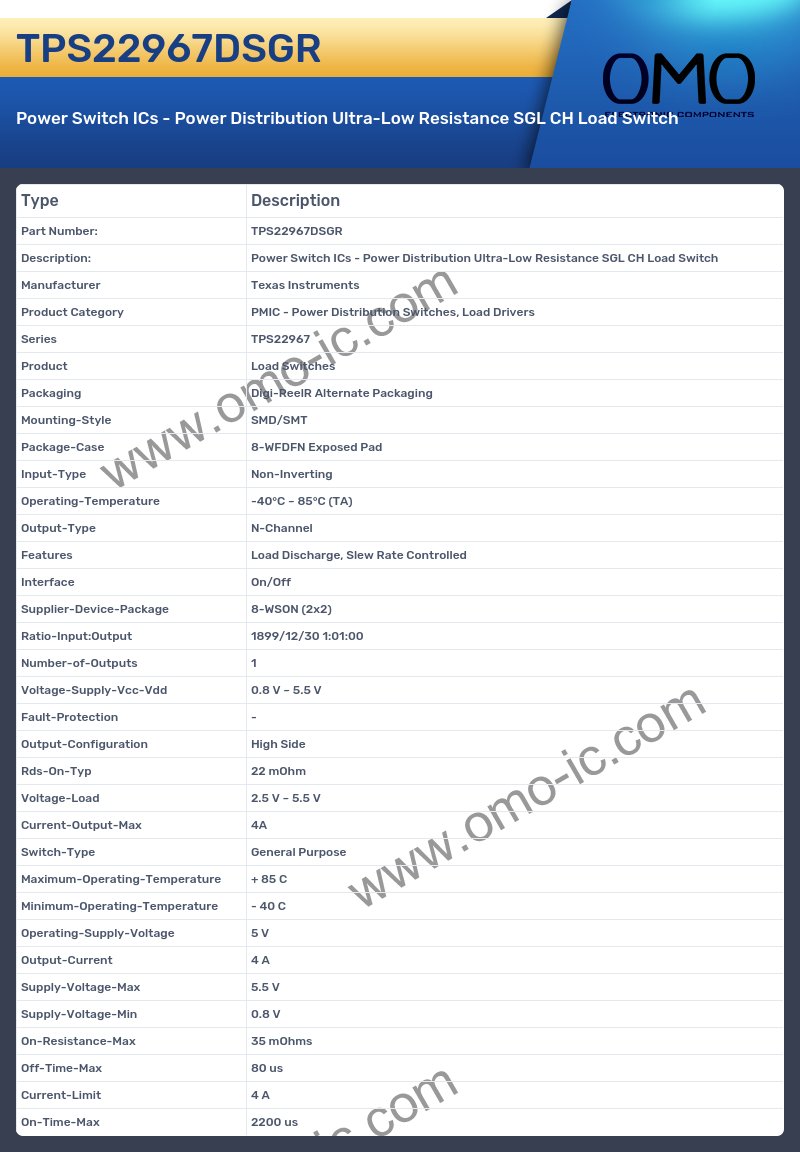

TPS22967DSGR Image

TPS22967DSGR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS22967
• Product Load Switches
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-WFDFN Exposed Pad
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type N-Channel
• Features Load Discharge, Slew Rate Controlled
• Interface On/Off
• Supplier-Device-Package 8-WSON (2x2)
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd 0.8 V ~ 5.5 V
• Fault-Protection -
• Output-Configuration High Side
• Rds-On-Typ 22 mOhm
• Voltage-Load 2.5 V ~ 5.5 V
• Current-Output-Max 4A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Output-Current 4 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 0.8 V
• On-Resistance-Max 35 mOhms
• Off-Time-Max 80 us
• Current-Limit 4 A
• On-Time-Max 2200 us
