TPS3124J18DBVR

TPS3124J18DBVR Overview

Product belongs to the TPS3124J18 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 13 mg SMD/SMT Mounting-Style SC-74A, SOT-753 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: SOT-23-5 The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 100 ms Minimum. This product's 1.62V. Power-off control: 437 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 14 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 3.3 V Minimum supply voltage is 0.75 V This product includes Watchdog This product's 0.85 V to 3.3 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 180 ms is 200 ms. The 1.68 V is 2.35 V. 1.62 V is set to 2.29 V.

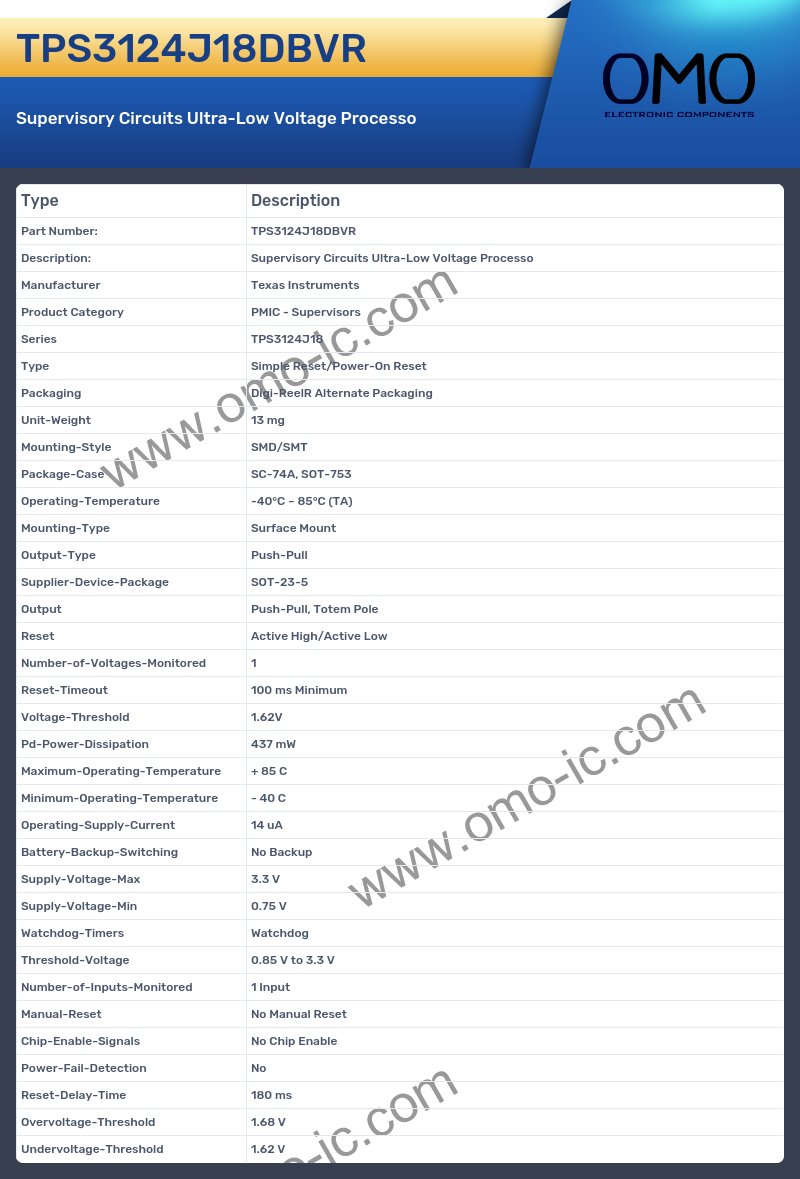

TPS3124J18DBVR Image

TPS3124J18DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3124J18
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 13 mg
• Mounting-Style SMD/SMT
• Package-Case SC-74A, SOT-753
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package SOT-23-5
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 100 ms Minimum
• Voltage-Threshold 1.62V
• Pd-Power-Dissipation 437 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 14 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 0.75 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 0.85 V to 3.3 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 180 ms
• Overvoltage-Threshold 1.68 V
• Undervoltage-Threshold 1.62 V
