TPS3307-18MDREP

TPS3307-18MDREP Overview

Product belongs to the TPS3307-18-EP series. Type: Multi-Voltage Supervisor Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -55°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 8-SOIC The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 3 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 1.68V, 2.93V, Adj. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 15 uA is 92 nA. This product does not have No Backup capability. This product is also known as V62/03629-01XE and can be referred to by either part number. Maximum supply voltage of 6 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 1.8 V 3.3 V is 2.32 V. This product can only 3 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 200 ms is 200 ms. The 3.02 V 1.73 V 1.29 V is 2.35 V. Adjustable 1.68 V 2.93 V is set to 2.29 V.

TPS3307-18MDREP Image

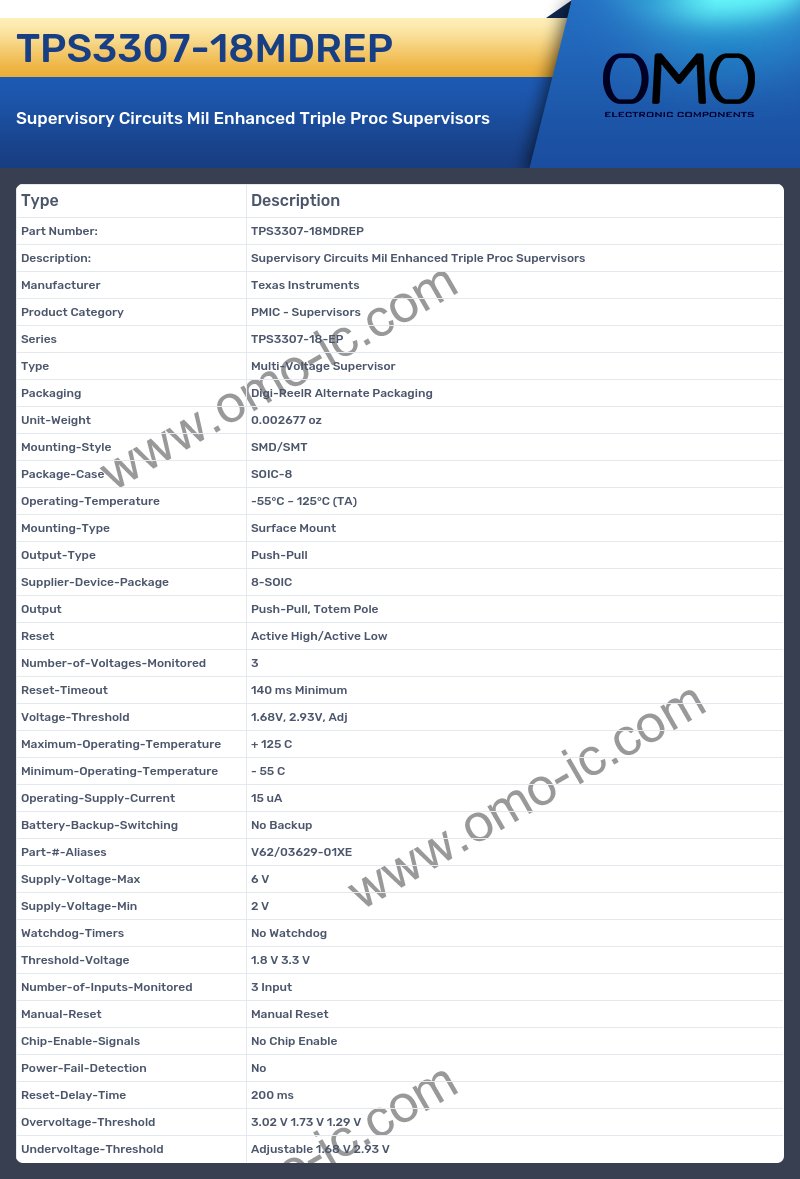

TPS3307-18MDREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3307-18-EP
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -55°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 3
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 1.68V, 2.93V, Adj
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 15 uA
• Battery-Backup-Switching No Backup
• Part-#-Aliases V62/03629-01XE
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1.8 V 3.3 V
• Number-of-Inputs-Monitored 3 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 200 ms
• Overvoltage-Threshold 3.02 V 1.73 V 1.29 V
• Undervoltage-Threshold Adjustable 1.68 V 2.93 V
