TPS3825-33DBVR

TPS3825-33DBVR Overview

Product belongs to the TPS3825-33 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: SOT-23-5 The Push-Pull, Totem Pole. This product's Active High. This product has 1 monitored voltages. The reset timeout for this product is 120 ms Minimum. This product's 2.93V. Power-off control: 437 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.1 V This product includes No Watchdog This product's 2.93 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 200 ms is 200 ms. The 3 V is 2.35 V. 2.93 V is set to 2.29 V.

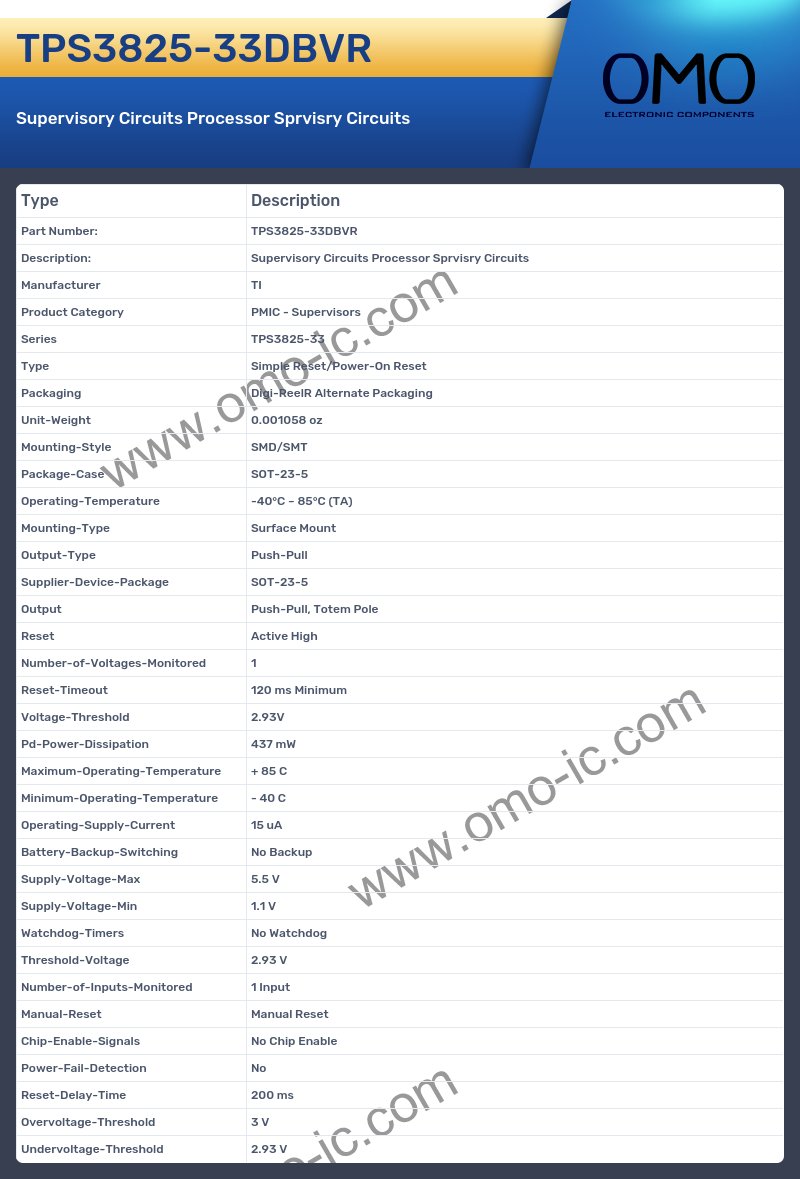

TPS3825-33DBVR Image

TPS3825-33DBVR Specifications

• Manufacturer TI
• Product Category PMIC - Supervisors
• Series TPS3825-33
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package SOT-23-5
• Output Push-Pull, Totem Pole
• Reset Active High
• Number-of-Voltages-Monitored 1
• Reset-Timeout 120 ms Minimum
• Voltage-Threshold 2.93V
• Pd-Power-Dissipation 437 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.1 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 2.93 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 200 ms
• Overvoltage-Threshold 3 V
• Undervoltage-Threshold 2.93 V
