TPS40077PWP

TPS40077PWP Overview

Product belongs to the TPS40077 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style HTSSOP-16 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 16-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 28 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Power Good, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.93 The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.7 V Input Voltage Range: 4.5 V to 28 V Output current: 20 A Switching frequency is 1000 kHz The TPS40077EVM-001.

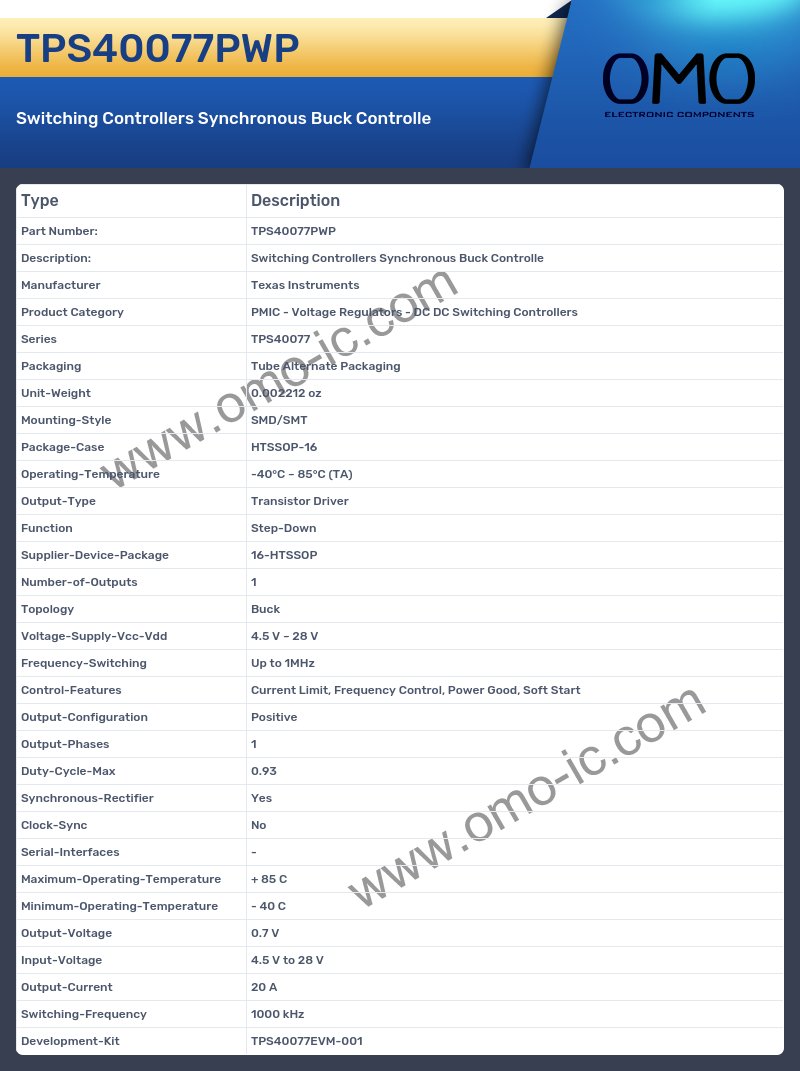

TPS40077PWP Image

TPS40077PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS40077
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 28 V
• Frequency-Switching Up to 1MHz
• Control-Features Current Limit, Frequency Control, Power Good, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.93
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.7 V
• Input-Voltage 4.5 V to 28 V
• Output-Current 20 A
• Switching-Frequency 1000 kHz
• Development-Kit TPS40077EVM-001
