TPS40211DRCT Overview

Product belongs to the TPS40211 series. Type: Inductive Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000921 oz SMD/SMT Mounting-Style VSON-10 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 10-VSON (3x3) Number-of-Outputs: 1 Topology: Boost, Flyback, SEPIC feedback Supply Voltage: 4.5 V ~ 52 V This product features 'Frequency-Switching' at 35kHz ~ 1MHz for optimal performance. The Control-Features include Enable, Frequency Control, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The operating frequency is 1 MHz. Input Voltage Range: 4.5 V to 52 V Output current: 1 A Maximum supply current: 2.5 mA The TPS40211EVM-352.

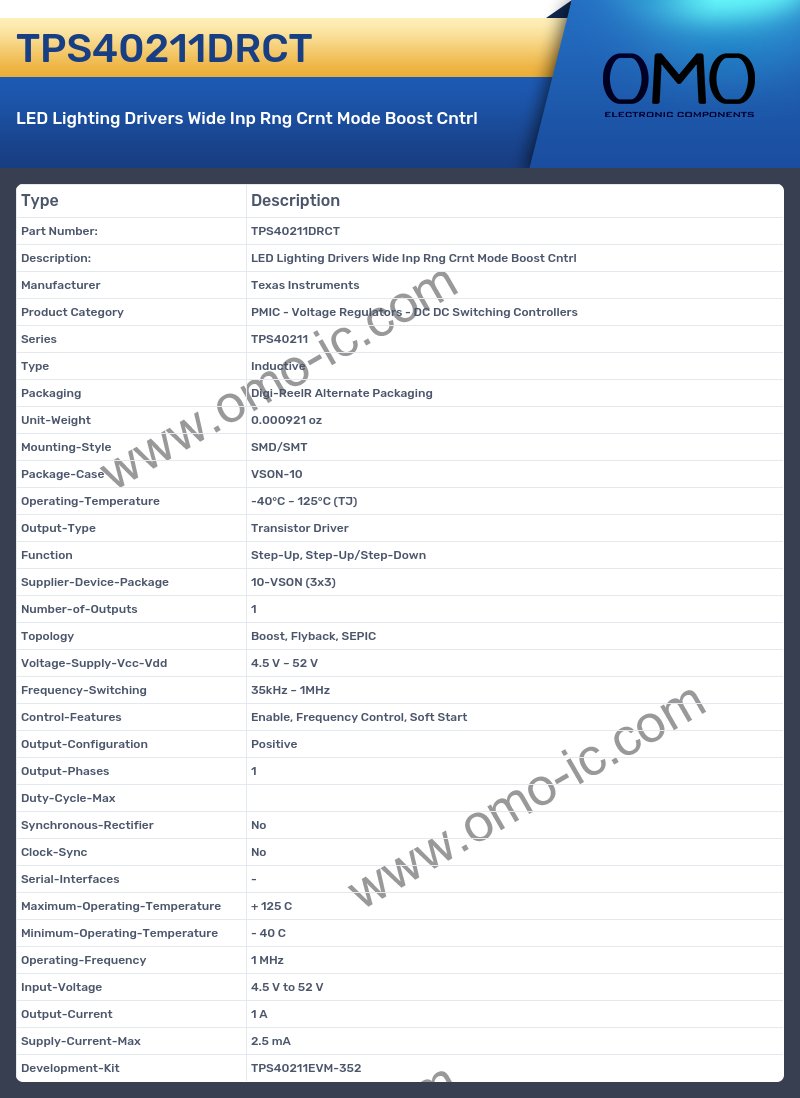

TPS40211DRCT Image

TPS40211DRCT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS40211
• Type Inductive
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000921 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-10
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 10-VSON (3x3)
• Number-of-Outputs 1
• Topology Boost, Flyback, SEPIC
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 52 V
• Frequency-Switching 35kHz ~ 1MHz
• Control-Features Enable, Frequency Control, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 1 MHz
• Input-Voltage 4.5 V to 52 V
• Output-Current 1 A
• Supply-Current-Max 2.5 mA
• Development-Kit TPS40211EVM-352
