TPS54226PWP

TPS54226PWP Overview

Product belongs to the SWIFT, D-CAP2, Eco-Mode series. Type: Voltage Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002046 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HTSSOP-14 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 14-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 700kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.76V . The value of Yes is included as a product attribute. The minimum input voltage is 2V. The 18V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: - 0.1 V to 5.7 V Input Voltage Range: 4.5 V to 18 V Maximum Input Voltage: 18 V Output current: 2 A Switching frequency is 700 kHz The product's 4.5 V is 5.1 V. The TPS54226EVM-539.

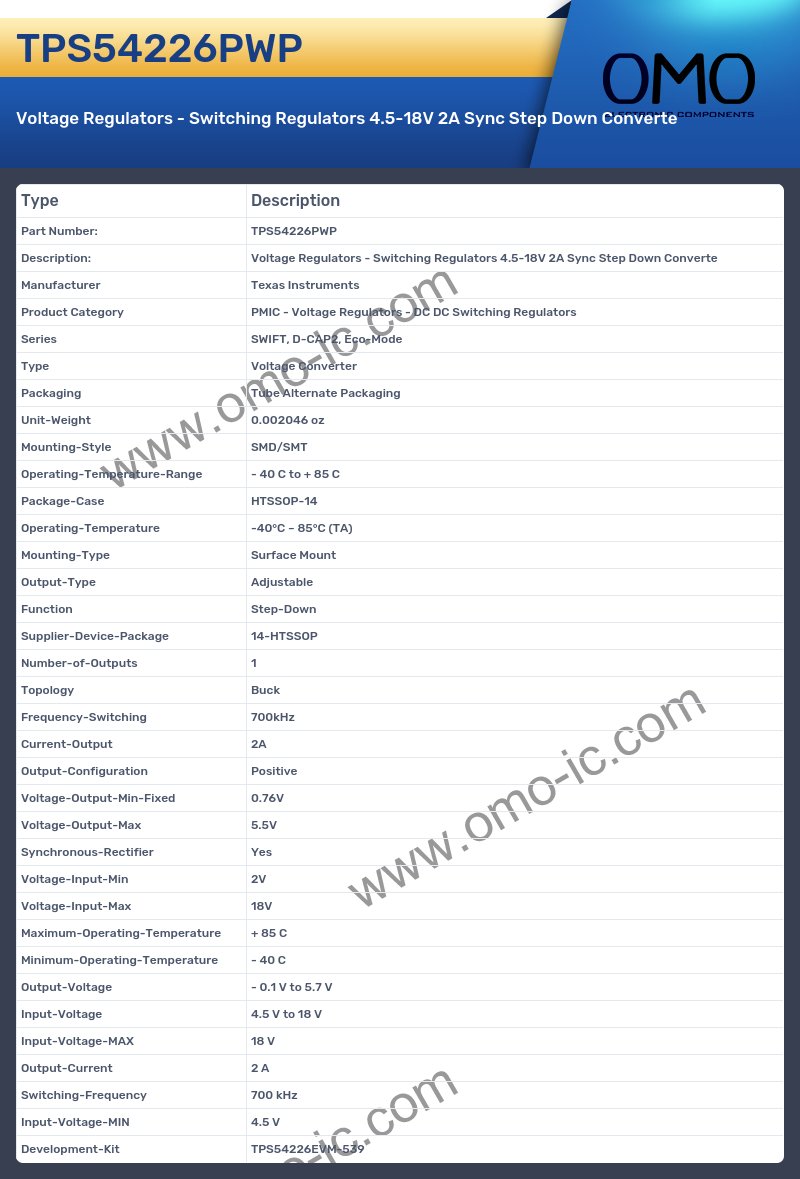

TPS54226PWP Image

TPS54226PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT, D-CAP2, Eco-Mode
• Type Voltage Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002046 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HTSSOP-14
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 14-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 700kHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.76V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 2V
• Voltage-Input-Max 18V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 0.1 V to 5.7 V
• Input-Voltage 4.5 V to 18 V
• Input-Voltage-MAX 18 V
• Output-Current 2 A
• Switching-Frequency 700 kHz
• Input-Voltage-MIN 4.5 V
• Development-Kit TPS54226EVM-539
