TPS54313PWP

TPS54313PWP Overview

Product belongs to the SWIFT series. Type: DC/DC Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HTSSOP-20 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Step-Down. Supplier device package: 20-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 350kHz, 550kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.5V . The value of Yes is included as a product attribute. The minimum input voltage is 3V. The 6V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.5 V Input Voltage Range: 3 V to 6 V Maximum Input Voltage: 6 V Output current: 3 A Switching frequency is 700 kHz The product's 3 V is 5.1 V. Load regulation is 0.21 % / A.

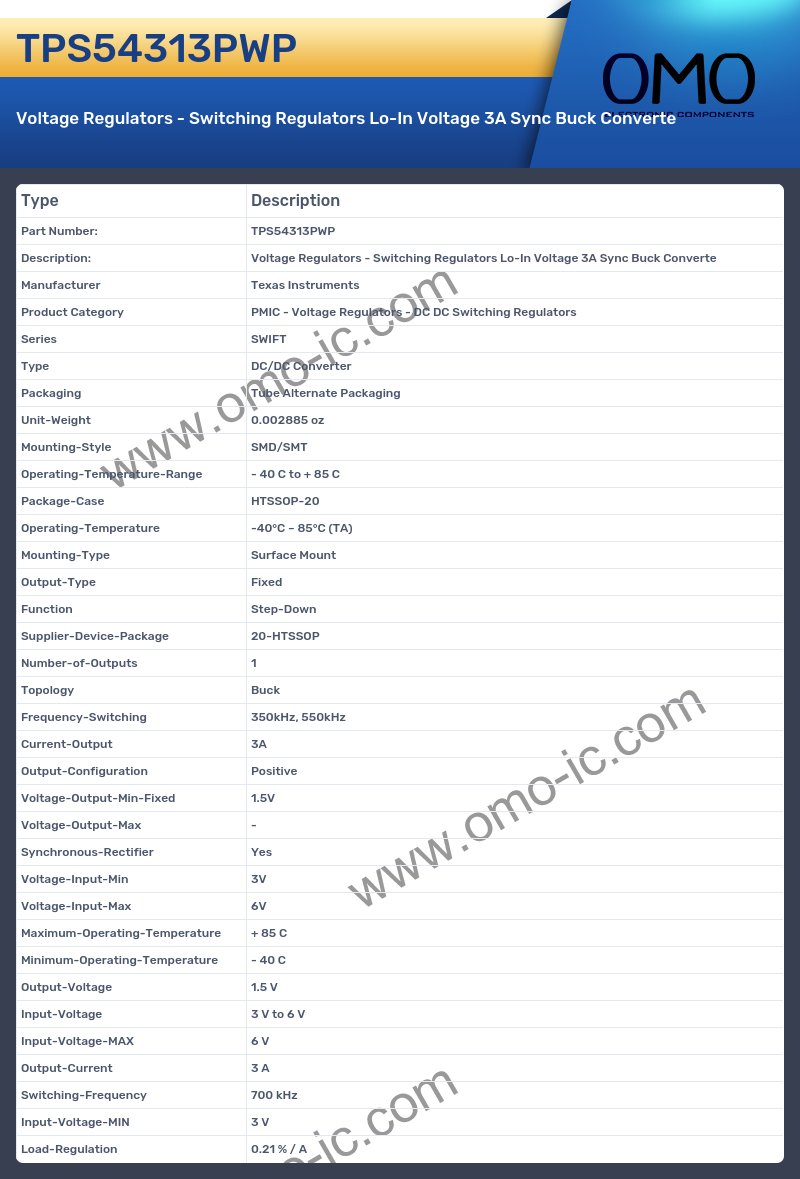

TPS54313PWP Image

TPS54313PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT
• Type DC/DC Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HTSSOP-20
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Down
• Supplier-Device-Package 20-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 350kHz, 550kHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.5V
• Voltage-Output-Max -
• Synchronous-Rectifier Yes
• Voltage-Input-Min 3V
• Voltage-Input-Max 6V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V
• Input-Voltage 3 V to 6 V
• Input-Voltage-MAX 6 V
• Output-Current 3 A
• Switching-Frequency 700 kHz
• Input-Voltage-MIN 3 V
• Load-Regulation 0.21 % / A
