TPS54334DDA

TPS54334DDA Overview

Product belongs to the TPS54334 series. Type: Step-Down Voltage Converter Tube is the packaging method for this product Weight of 0.004325 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 570kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of Yes is included as a product attribute. The minimum input voltage is 4.2V. The 28V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 24 V 310 uA is 92 nA. Input Voltage Range: 4.2 V to 28 V Maximum Input Voltage: 28 V Output current: 3 A Switching frequency is 570 kHz The product's 4.2 V is 5.1 V. Load regulation is 1.5 %.

TPS54334DDA Image

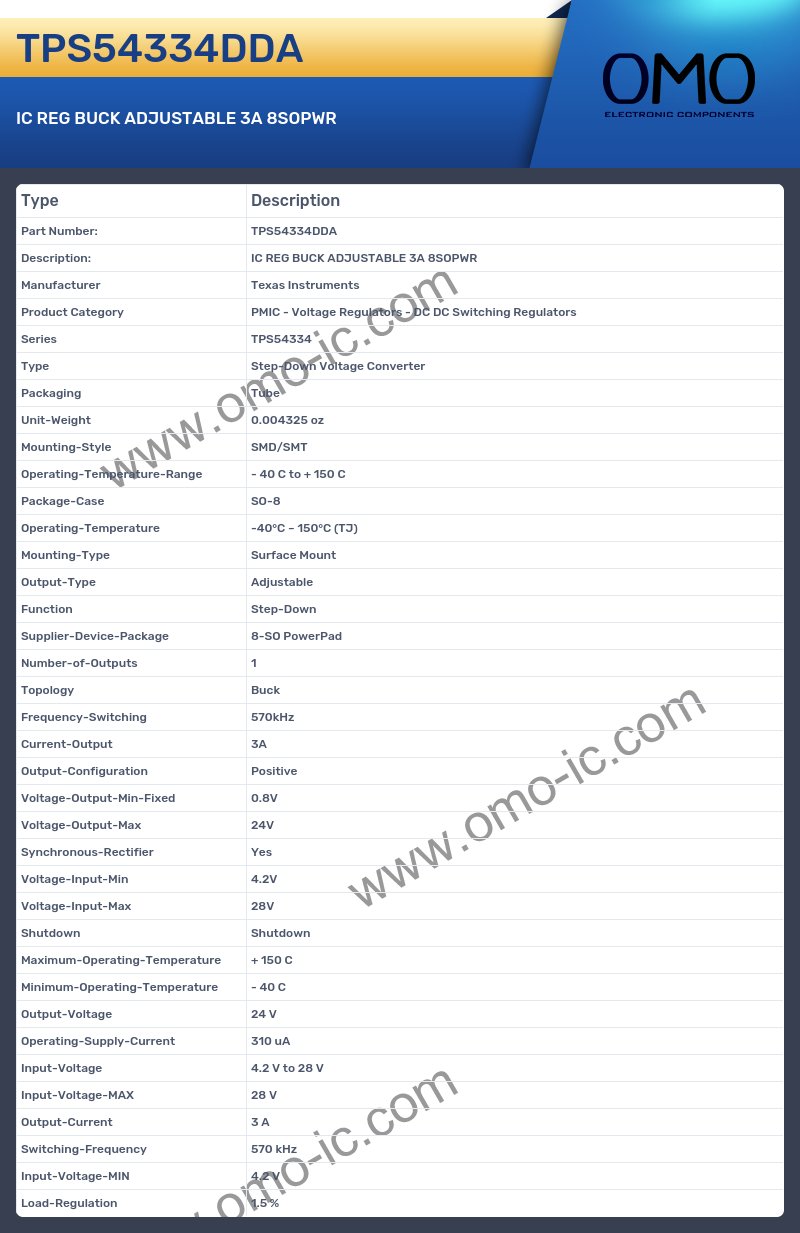

TPS54334DDA Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS54334
• Type Step-Down Voltage Converter
• Packaging Tube
• Unit-Weight 0.004325 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 570kHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 24V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.2V
• Voltage-Input-Max 28V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 24 V
• Operating-Supply-Current 310 uA
• Input-Voltage 4.2 V to 28 V
• Input-Voltage-MAX 28 V
• Output-Current 3 A
• Switching-Frequency 570 kHz
• Input-Voltage-MIN 4.2 V
• Load-Regulation 1.5 %
