TPS60120PWP

TPS60120PWP Overview

Product belongs to the TPS60120 series. Type: Charge Pump (Inductorless) Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HTSSOP-20 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Step-Up. Supplier device package: 20-HTSSOP Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 320kHz for optimal performance. The Positive. Minimum fixed output voltage is 3.3V . The value of No is included as a product attribute. The minimum input voltage is 1.8V. The 3.6V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Input Voltage Range: 1.8 V to 3.6 V Maximum Input Voltage: 3.6 V Output current: 200 mA Switching frequency is 320 kHz The product's 1.8 V is 5.1 V.

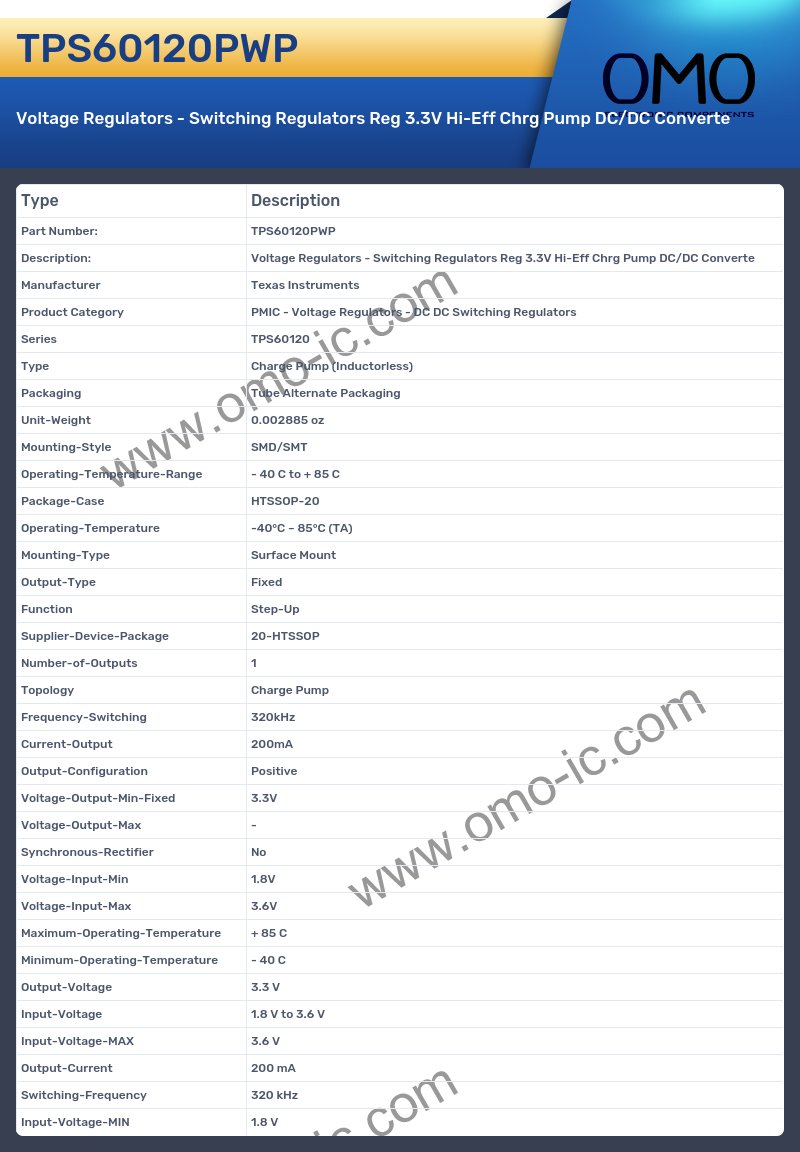

TPS60120PWP Image

TPS60120PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS60120
• Type Charge Pump (Inductorless)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HTSSOP-20
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Up
• Supplier-Device-Package 20-HTSSOP
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 320kHz
• Current-Output 200mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 3.3V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 1.8V
• Voltage-Input-Max 3.6V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage 1.8 V to 3.6 V
• Input-Voltage-MAX 3.6 V
• Output-Current 200 mA
• Switching-Frequency 320 kHz
• Input-Voltage-MIN 1.8 V
