TPS61300YFFT

TPS61300YFFT Overview

Product belongs to the TPS61300 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DSBGA-20 This product's 1.92MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Constant Current Versatile Camera Flash applications for maximum usability Supplier device package: 20-DSBGA Number-of-Outputs: 3 Current-Output-Channel is 400mA, 800mA (Flash) This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 5.5V. The minimum 2.5V required for voltage supply. Output voltage: 5.7V Dimming control is done through I2C communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 2 MHz. Input Voltage Range: 2.5 V to 5.5 V Output current: 1.5 A Maximum supply current: 0.7 mA High-Level-Output-Current of 8 mA 8 mA low-level output current

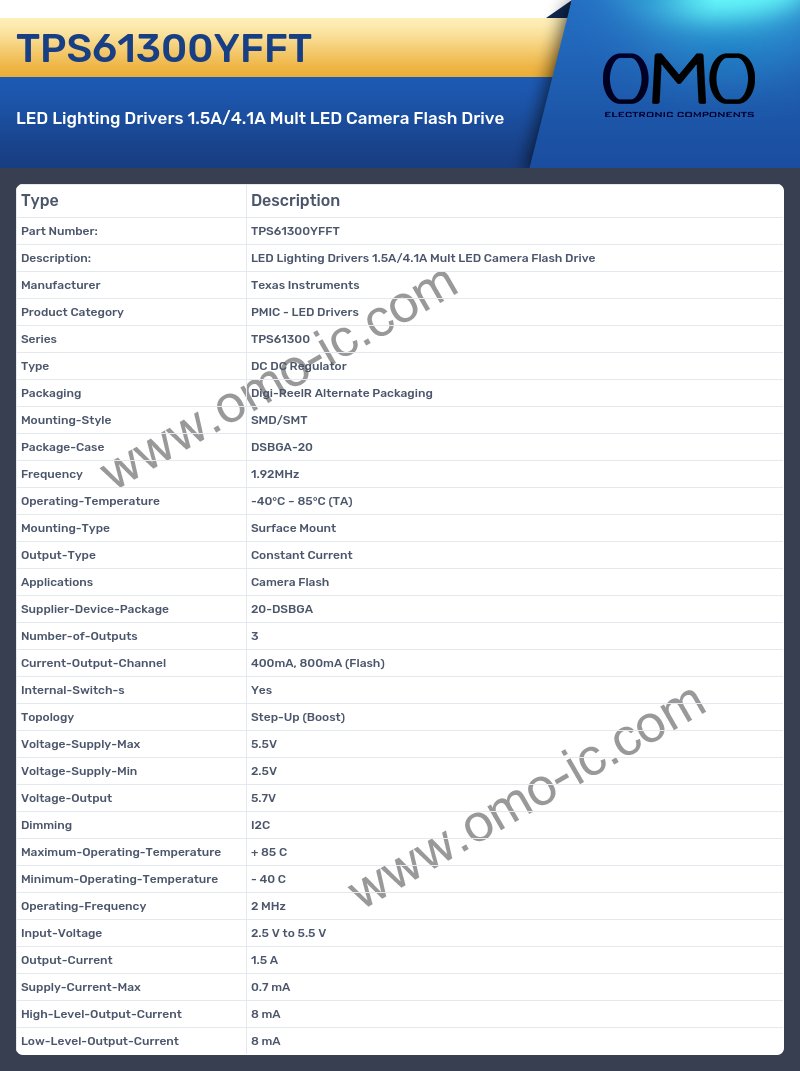

TPS61300YFFT Image

TPS61300YFFT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS61300
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DSBGA-20
• Frequency 1.92MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Constant Current
• Applications Camera Flash
• Supplier-Device-Package 20-DSBGA
• Number-of-Outputs 3
• Current-Output-Channel 400mA, 800mA (Flash)
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 2.5V
• Voltage-Output 5.7V
• Dimming I2C
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 2 MHz
• Input-Voltage 2.5 V to 5.5 V
• Output-Current 1.5 A
• Supply-Current-Max 0.7 mA
• High-Level-Output-Current 8 mA
• Low-Level-Output-Current 8 mA
