TPS62560DRVR

TPS62560DRVR Overview

Product belongs to the TPS62560 series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications WSON-6 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 6-SON (2x2) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 2.25MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.85V . The value of Yes is included as a product attribute. The minimum input voltage is 2.5V. The 5.5V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.85 V to 5.5 V Input Voltage Range: 2.5 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 600 mA Switching frequency is 2.25 MHz The product's 2.5 V is 5.1 V. The TPS62560EVM-330.

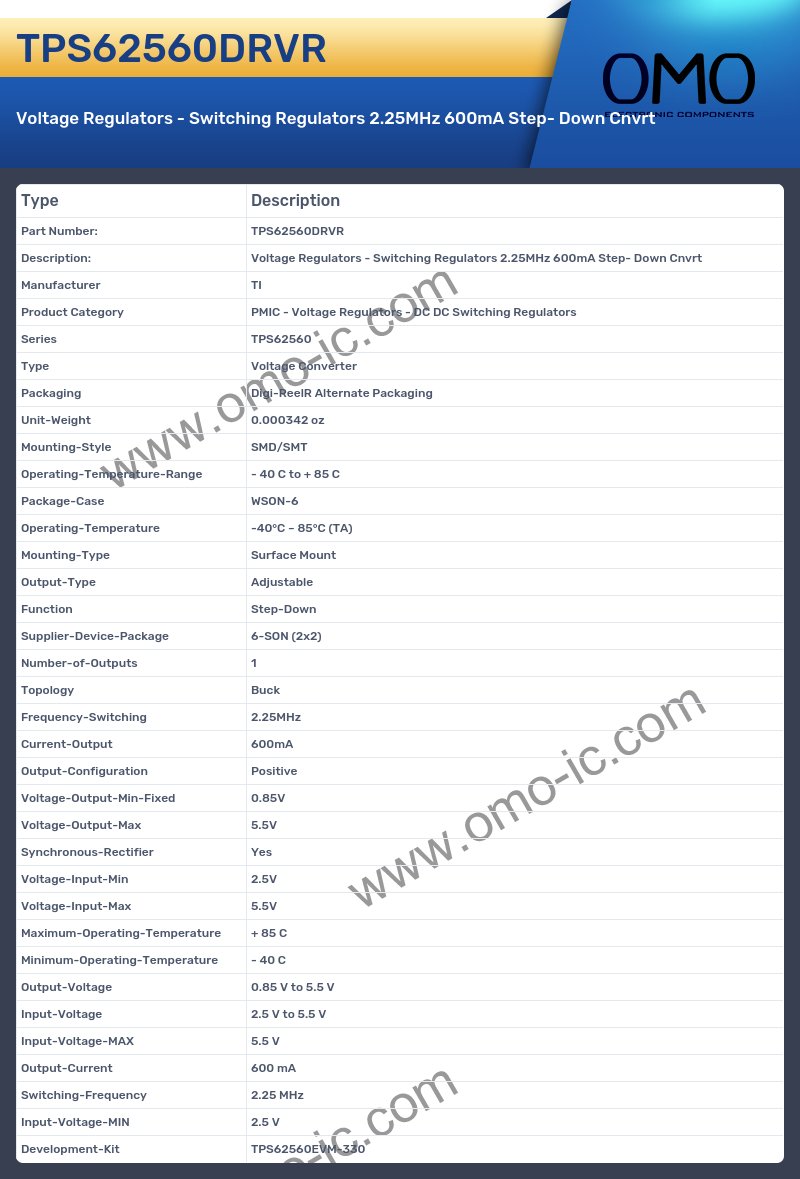

TPS62560DRVR Image

TPS62560DRVR Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS62560
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 6-SON (2x2)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 2.25MHz
• Current-Output 600mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.85V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 2.5V
• Voltage-Input-Max 5.5V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.85 V to 5.5 V
• Input-Voltage 2.5 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 600 mA
• Switching-Frequency 2.25 MHz
• Input-Voltage-MIN 2.5 V
• Development-Kit TPS62560EVM-330
