TPS65130RGET

TPS65130RGET Overview

Product belongs to the TPS65130 series. Type: DC/DC Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001524 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VQFN-24 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 24-VQFN (4x4) Number-of-Outputs: 2 Topology: Boost, Buck-Boost feedback This product features 'Frequency-Switching' at 1.38MHz for optimal performance. The Positive and Negative (Dual Rail). Minimum fixed output voltage is 3.2V, -2V . The value of No is included as a product attribute. The minimum input voltage is 2.7V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: Adj 300 uA is 92 nA. Input Voltage Range: 2.7 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 800 mA Switching frequency is 1.38 MHz The product's 2.7 V is 5.1 V. The TPS65130EVM-063. Minimum supply voltage is 2.7 V

TPS65130RGET Image

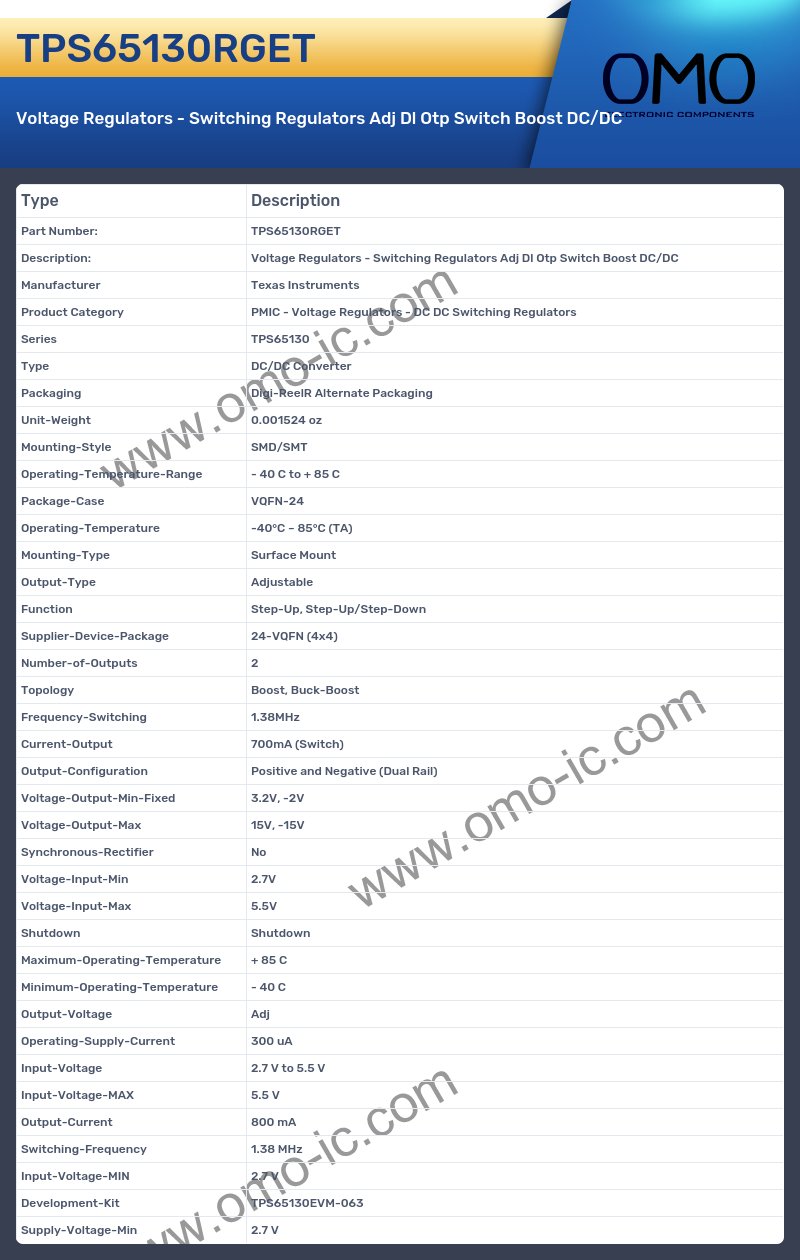

TPS65130RGET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS65130
• Type DC/DC Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001524 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VQFN-24
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 24-VQFN (4x4)
• Number-of-Outputs 2
• Topology Boost, Buck-Boost
• Frequency-Switching 1.38MHz
• Current-Output 700mA (Switch)
• Output-Configuration Positive and Negative (Dual Rail)
• Voltage-Output-Min-Fixed 3.2V, -2V
• Voltage-Output-Max 15V, -15V
• Synchronous-Rectifier No
• Voltage-Input-Min 2.7V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Operating-Supply-Current 300 uA
• Input-Voltage 2.7 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 800 mA
• Switching-Frequency 1.38 MHz
• Input-Voltage-MIN 2.7 V
• Development-Kit TPS65130EVM-063
• Supply-Voltage-Min 2.7 V
