TPS709A30DBVR

TPS709A30DBVR Overview

Product belongs to the TPS709 series. This product is categorized as Voltage Regulators Type: Linear Regulator Tape & Reel (TR) Alternate Packaging is the packaging method for this product SC-74A, SOT-753 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 30V voltage input Number-of-Outputs: 1 Output Output voltage: 3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3 V 1 uA is 92 nA. Maximum Input Voltage: 30 V Output current: 150 mA The product's 2.7 V is 5.1 V. Load regulation is 20 mV. The voltage regulation accuracy of this product is 2 %. The 960 mV. The maximum 1.4 V is 360 mV. This product's 3 mV is 0.01 %/V. The product's 52 dB is -20 dB.

TPS709A30DBVR Image

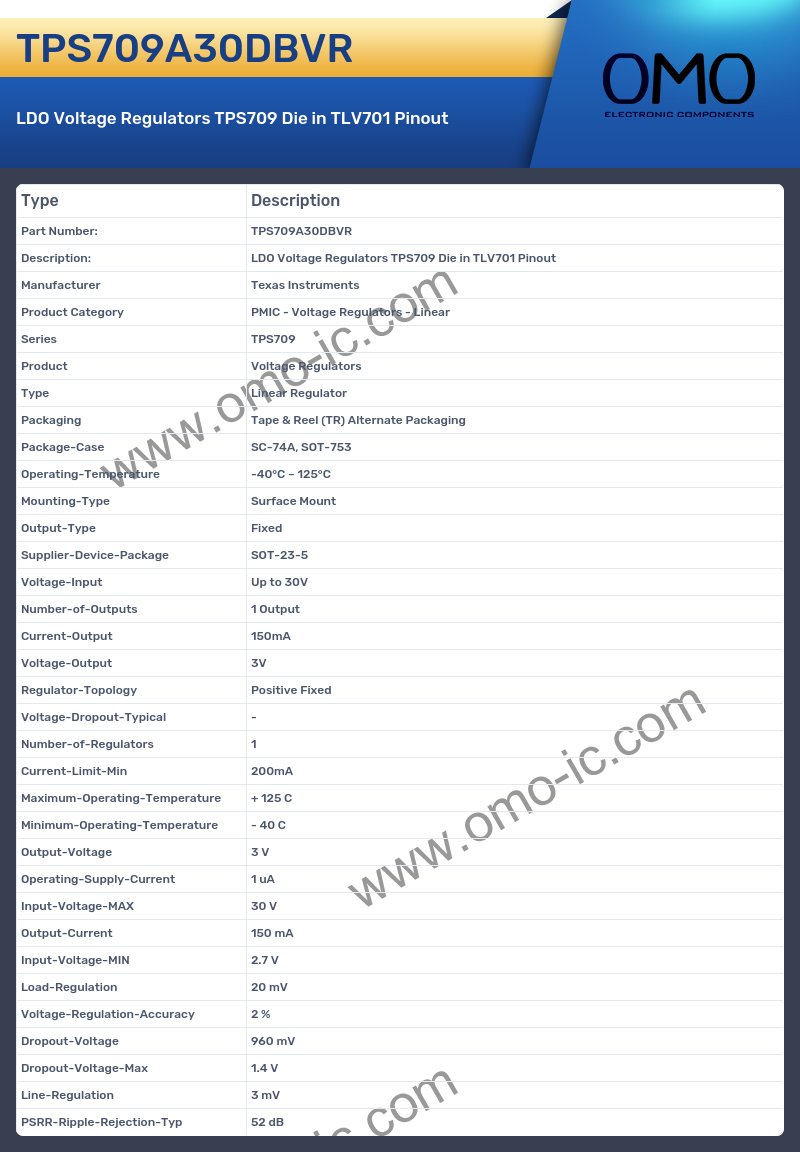

TPS709A30DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS709
• Product Voltage Regulators
• Type Linear Regulator
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case SC-74A, SOT-753
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 30V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 200mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3 V
• Operating-Supply-Current 1 uA
• Input-Voltage-MAX 30 V
• Output-Current 150 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 20 mV
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 960 mV
• Dropout-Voltage-Max 1.4 V
• Line-Regulation 3 mV
• PSRR-Ripple-Rejection-Typ 52 dB
