TPS71247DRCT

TPS71247DRCT Overview

Product belongs to the TPS71247 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000921 oz SMD/SMT Mounting-Style VSON-10 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 10-VSON (3x3) 2.7 V ~ 5.5 V voltage input Number-of-Outputs: 2 Output Output voltage: 1.8V, 2.85V Positive Fixed regulator topology The product has 2 of 1. Power-off control: 1.92 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V 2.85 V Maximum Input Voltage: 5.5 V Output current: 250 mA The product's + 2.7 V is 5.1 V. Load regulation is 0.8 % / mA. The voltage regulation accuracy of this product is 1.5 %. Input bias current of 190 uA The 0.125 V at 250 mA. The maximum 230 mV at 250 mA is 360 mV. This product's 0.05 % / V is 0.01 %/V.

TPS71247DRCT Image

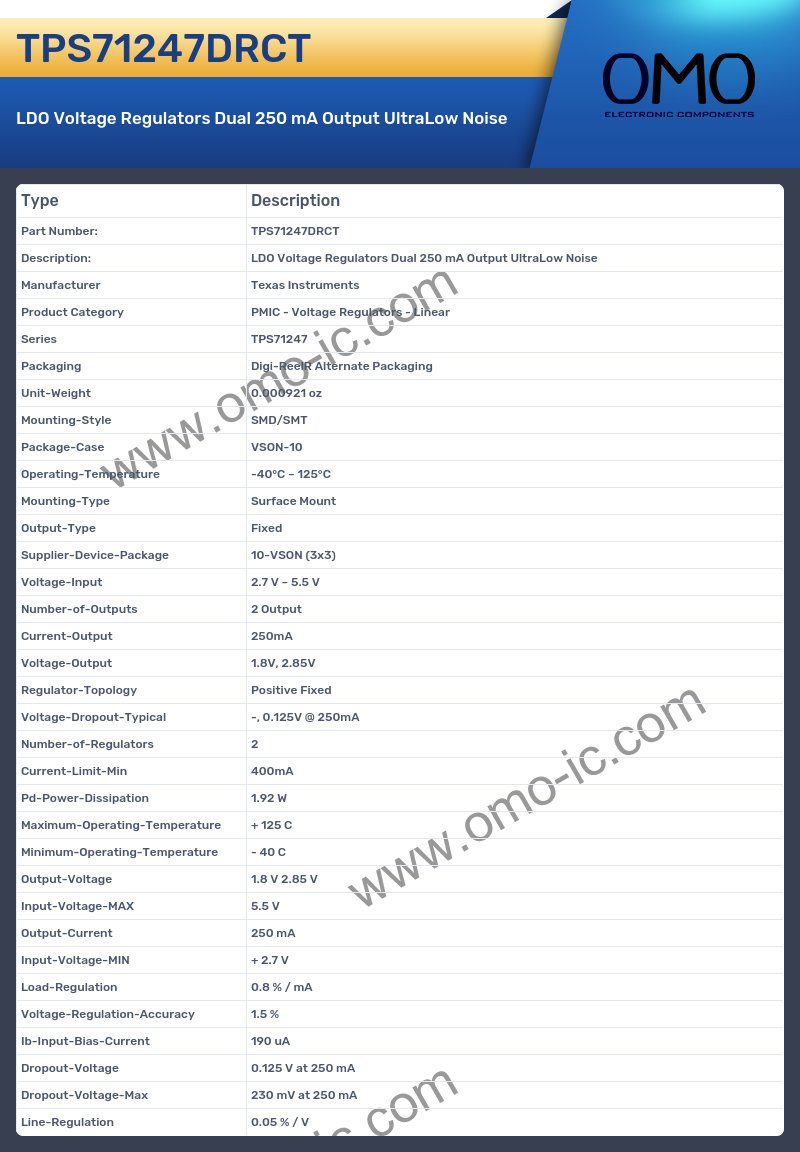

TPS71247DRCT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS71247
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000921 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-10
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 10-VSON (3x3)
• Voltage-Input 2.7 V ~ 5.5 V
• Number-of-Outputs 2 Output
• Current-Output 250mA
• Voltage-Output 1.8V, 2.85V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -, 0.125V @ 250mA
• Number-of-Regulators 2
• Current-Limit-Min 400mA
• Pd-Power-Dissipation 1.92 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V 2.85 V
• Input-Voltage-MAX 5.5 V
• Output-Current 250 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 0.8 % / mA
• Voltage-Regulation-Accuracy 1.5 %
• Ib-Input-Bias-Current 190 uA
• Dropout-Voltage 0.125 V at 250 mA
• Dropout-Voltage-Max 230 mV at 250 mA
• Line-Regulation 0.05 % / V
