TPS73701DRBR

TPS73701DRBR Overview

Product belongs to the TPS73701 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000847 oz SMD/SMT Mounting-Style VSON-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SON Exposed Pad (3x3) 2.2 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 2.5 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 1 A The product's + 2.2 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 1 %. Reference voltage is 1.216 V . The 0.13 V at 1 A. The maximum 500 mV at 1 A is 360 mV. This product's 0.01 % / V is 0.01 %/V.

TPS73701DRBR Image

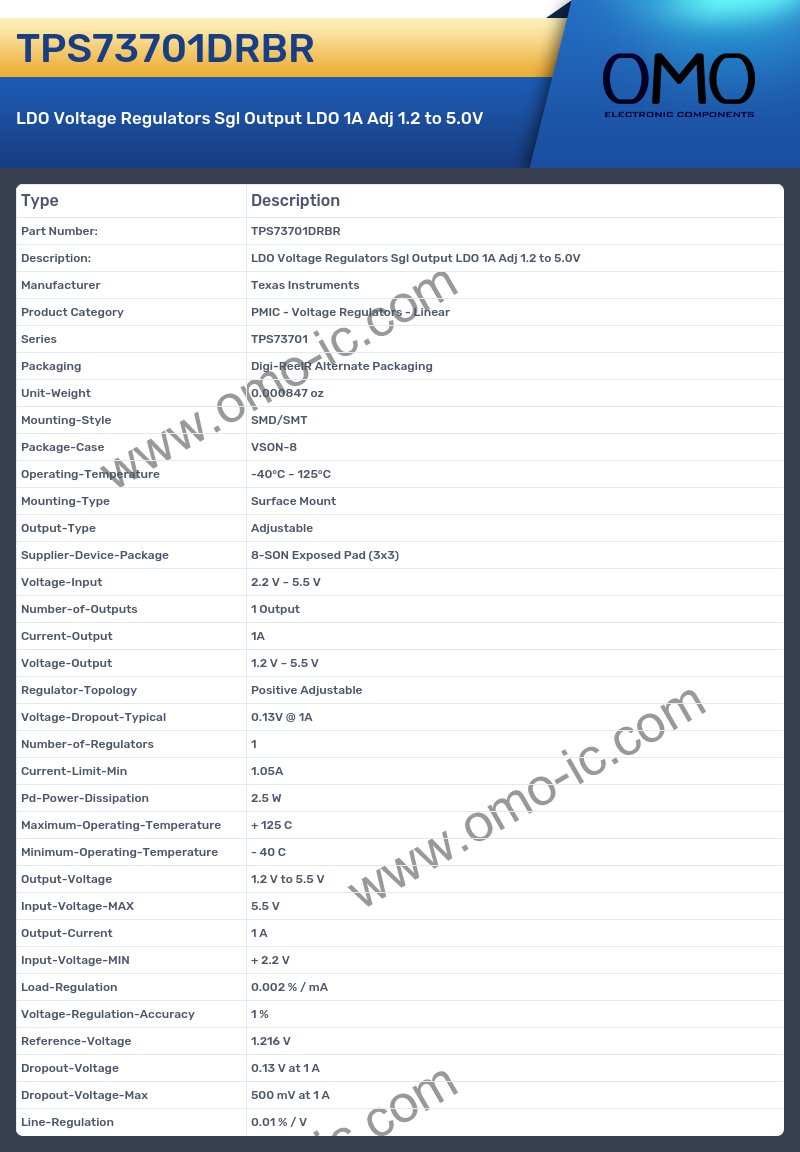

TPS73701DRBR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS73701
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000847 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SON Exposed Pad (3x3)
• Voltage-Input 2.2 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 1.2 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.13V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min 1.05A
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 1 A
• Input-Voltage-MIN + 2.2 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 1 %
• Reference-Voltage 1.216 V
• Dropout-Voltage 0.13 V at 1 A
• Dropout-Voltage-Max 500 mV at 1 A
• Line-Regulation 0.01 % / V
