TPS73HD301PWP

TPS73HD301PWP Overview

Product belongs to the TPS73HD301 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004180 oz SMD/SMT Mounting-Style HTSSOP-28 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Fixed Supplier device package: 28-HTSSOP 2.97 V ~ 10 V voltage input Number-of-Outputs: 2 Output Output voltage: 1.2 V ~ 9.75 V, 3.3V Positive Fixed and Adjustable regulator topology The product has 2 of 1. Power-off control: 7.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 9.7 V Maximum Input Voltage: 10 V Output current: 700 mA The product's 2.97 V is 5.1 V. Load regulation is 37 mV. Input bias current of 340 uA This product has a 415 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.182 V . The 0.0045 V at 10 mA. The maximum 800 mV is 360 mV. This product's 6 mV is 0.01 %/V. The product's 59 dB is -20 dB.

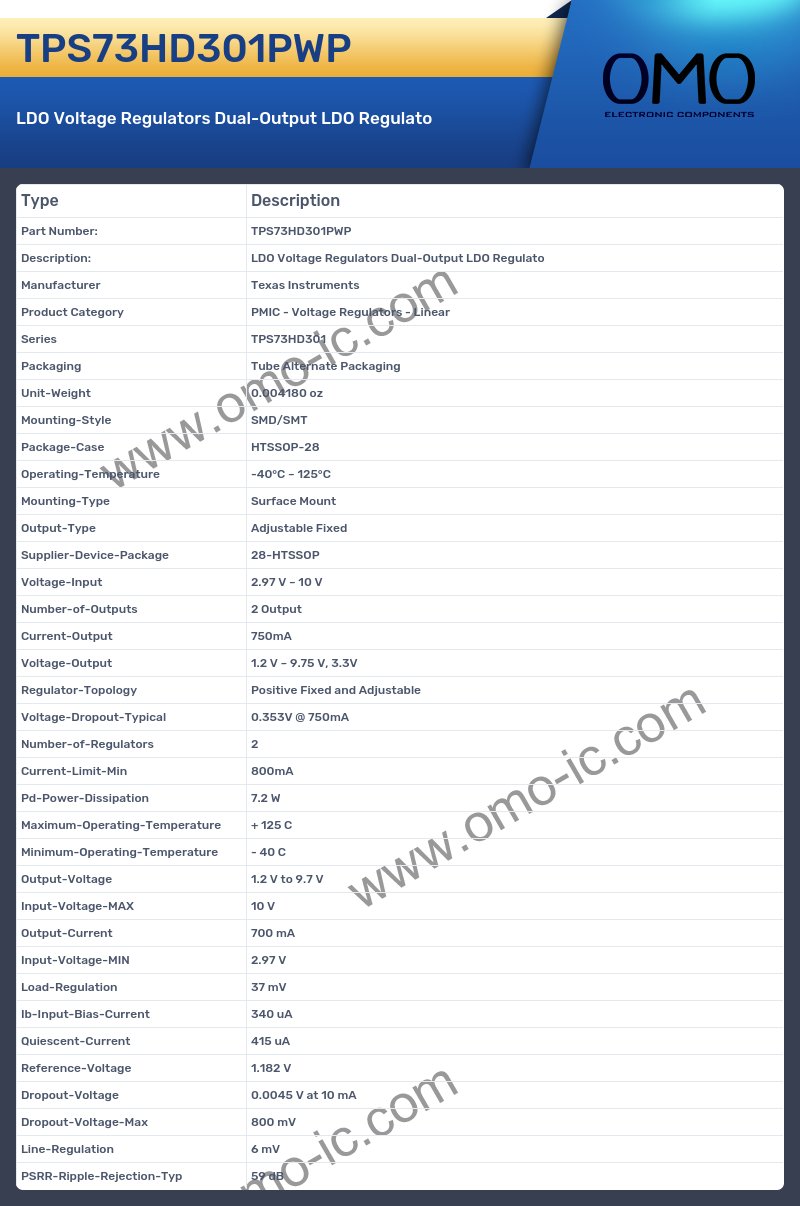

TPS73HD301PWP Image

TPS73HD301PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS73HD301
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004180 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-28
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable Fixed
• Supplier-Device-Package 28-HTSSOP
• Voltage-Input 2.97 V ~ 10 V
• Number-of-Outputs 2 Output
• Current-Output 750mA
• Voltage-Output 1.2 V ~ 9.75 V, 3.3V
• Regulator-Topology Positive Fixed and Adjustable
• Voltage-Dropout-Typical 0.353V @ 750mA
• Number-of-Regulators 2
• Current-Limit-Min 800mA
• Pd-Power-Dissipation 7.2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 9.7 V
• Input-Voltage-MAX 10 V
• Output-Current 700 mA
• Input-Voltage-MIN 2.97 V
• Load-Regulation 37 mV
• Ib-Input-Bias-Current 340 uA
• Quiescent-Current 415 uA
• Reference-Voltage 1.182 V
• Dropout-Voltage 0.0045 V at 10 mA
• Dropout-Voltage-Max 800 mV
• Line-Regulation 6 mV
• PSRR-Ripple-Rejection-Typ 59 dB
