TPS75125MPWPREP

TPS75125MPWPREP Overview

Product belongs to the TPS75125-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 20-HTSSOP 2.7 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 7.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 2.5 V Maximum Input Voltage: 5.5 V Output current: 1.5 A The product's + 2.7 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 3 %. This product is also known as V62/03636-14XE and can be referred to by either part number. Input bias current of 75 uA This product has a 125 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.18 V . The 0.16 V at 1.5 A. The maximum 400 mV at 1.5 A is 360 mV. This product's 0.01 % / V is 0.01 %/V.

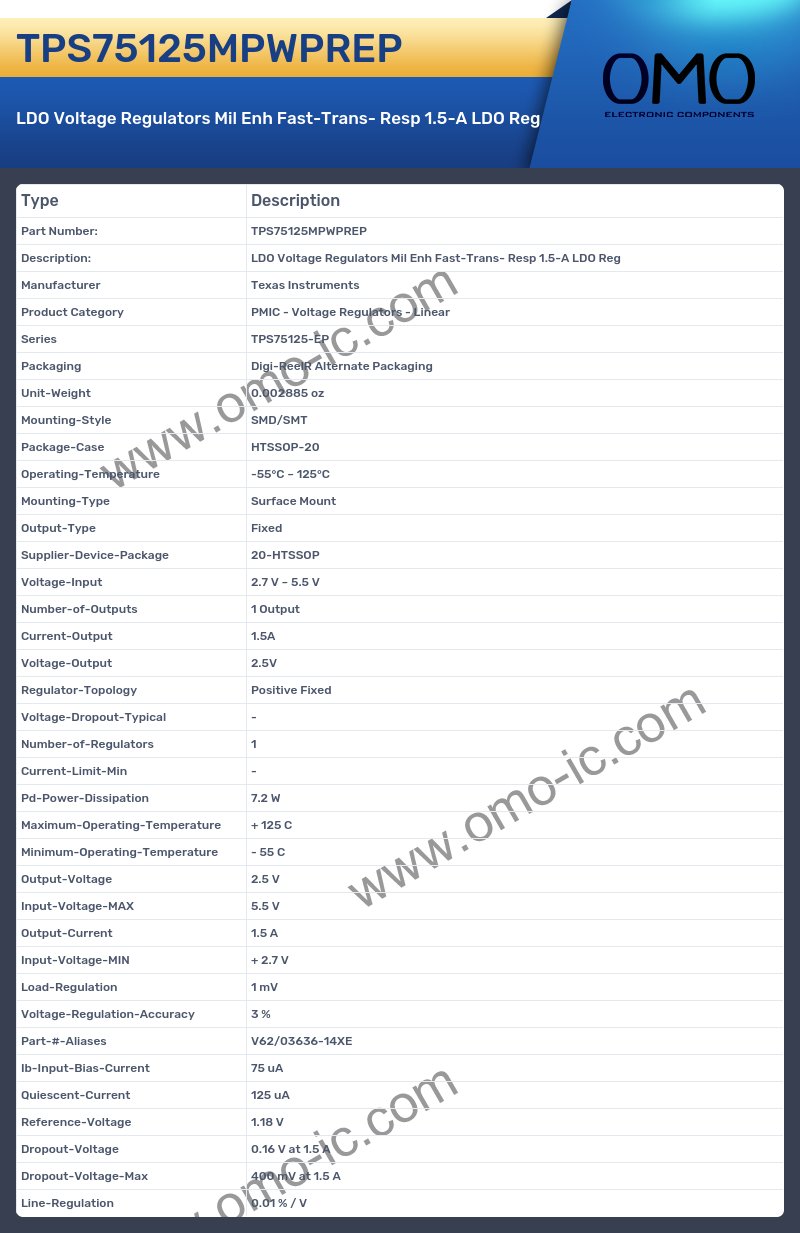

TPS75125MPWPREP Image

TPS75125MPWPREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS75125-EP
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 20-HTSSOP
• Voltage-Input 2.7 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 7.2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 1.5 A
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 3 %
• Part-#-Aliases V62/03636-14XE
• Ib-Input-Bias-Current 75 uA
• Quiescent-Current 125 uA
• Reference-Voltage 1.18 V
• Dropout-Voltage 0.16 V at 1.5 A
• Dropout-Voltage-Max 400 mV at 1.5 A
• Line-Regulation 0.01 % / V
