| Mfr. #: | TPS77501DR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | LDO Voltage Regulators Fast-Tran-Res 500-mA |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | TPS77501DR Datasheet |
Product belongs to the TPS77501 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC 2.7 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 0.904 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V to 5.5 V Maximum Input Voltage: 10 V Output current: 500 mA The product's + 2.7 V is 5.1 V. Load regulation is 3 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 85 uA Reference voltage is 1.1834 V . The 0.169 V at 500 mA. This product's 0.01 % / V is 0.01 %/V.

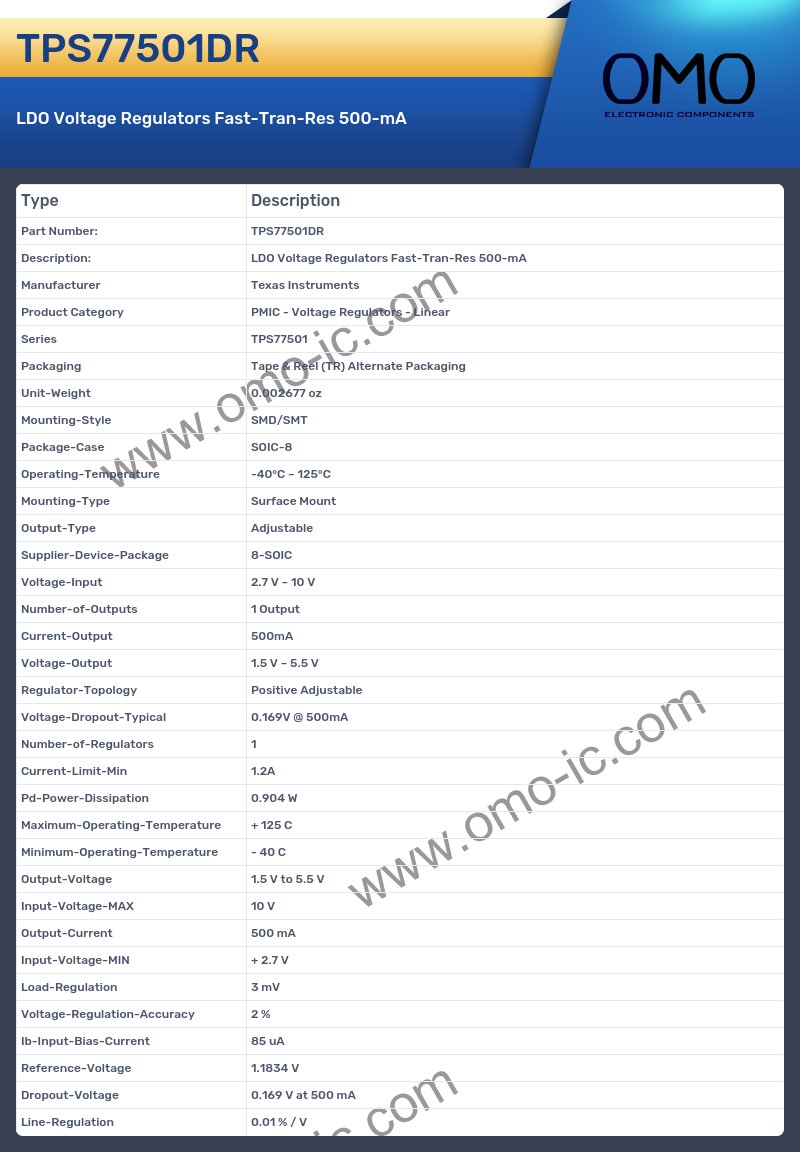

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TPS77501DR Specifications
A: What is the Series of the product?
Q: The Series of the product is TPS77501.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tape & Reel (TR) Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.002677 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-8
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 125°C
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Adjustable.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-SOIC.
A: At what frequency does the Voltage-Input?
Q: The product Voltage-Input is 2.7 V ~ 10 V.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1 Output.
A: At what frequency does the Voltage-Output?
Q: The product Voltage-Output is 1.5 V ~ 5.5 V.
A: At what frequency does the Regulator-Topology?
Q: The product Regulator-Topology is Positive Adjustable.
A: What is the Number-of-Regulators of the product?
Q: The Number-of-Regulators of the product is 1.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 0.904 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: At what frequency does the Output-Voltage?
Q: The product Output-Voltage is 1.5 V to 5.5 V.
A: At what frequency does the Input-Voltage-MAX?
Q: The product Input-Voltage-MAX is 10 V.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 500 mA
A: At what frequency does the Input-Voltage-MIN?
Q: The product Input-Voltage-MIN is + 2.7 V.
A: At what frequency does the Load-Regulation?
Q: The product Load-Regulation is 3 mV.
A: What is the Voltage-Regulation-Accuracy of the product?
Q: The Voltage-Regulation-Accuracy of the product is 2 %.
A: At what frequency does the Ib-Input-Bias-Current?
Q: The product Ib-Input-Bias-Current is 85 uA.
A: At what frequency does the Reference-Voltage?
Q: The product Reference-Voltage is 1.1834 V.
A: At what frequency does the Dropout-Voltage?
Q: The product Dropout-Voltage is 0.169 V at 500 mA.
A: Is the cutoff frequency of the product Line-Regulation?
Q: Yes, the product's Line-Regulation is indeed 0.01 % / V
